CCOM Electronics Technology Co., Ltd.
CCTV Optical Master to Provide Best Video Solutions

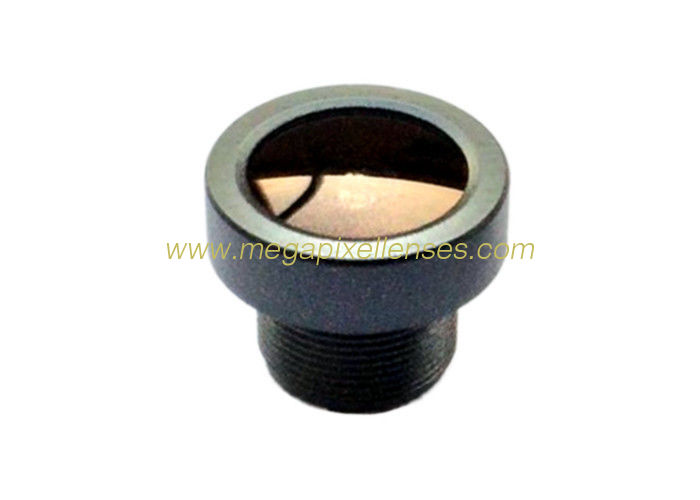

1/4" 2.3mm F2.0 Megapixel M7*0.35 mount 140degree Wide Angle Lens for 1/4" 1.3MP~3MP sensors
 |
Product Details:
| Place of Origin: | China |
| Brand Name: | CCOM LENS |
| Model Number: | 14023MP-M7(B) 14023MPF-M7(B) |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100pcs |
|---|---|
| Packaging Details: | Standard |
| Delivery Time: | 2-7 work days |
| Payment Terms: | T/T, Western Union, Moneygram, Paypal |
| Supply Ability: | Samples available |
Detailed Product Description
| Video Lens: | M7 Mount Wide Angle Lens | Resolution: | Up To 3MP |
|---|---|---|---|
| FOV(DxHxV): | 140°*112°*78° | Lens Constructure: | 2G2P/2G2P+IR |
| High Light: | megapixel M7*0.35 mount lens,lens supplier,board lens |
||
1/4" 2.3mm F2.0 1.3MP~3MP M7*P0.35 mount 140degree wide-angel lens, 2.3mm M7 cctv lens
MODEL 14023MPF-M7(B)
SENSOR SIZE 1/4” (1.3~3MP)
FOCAL LENGTH(EFL) 2.3mm
F.O.V.(D*H*V) 140°*112°*78°
RESOLUTION 1.3~3MP
APERTURE F2.0
TV DISTORTION <-25%
MOUNT M7XP0.35
B.F.L. 2.45mm
F.B.L. 1.51mm
T.T.L. 9.30mm
LENS CONSTRUCTURE 2G2P+IR650
Tips:
- ***MP: without IR-Cut filter
- ***MPF: with IR-Cut filter
- 650nm/850nm/940nm IR filter optional
- M7/M8/M12 mount option
- For more lenses, please feel free to contact us at sales01@megapixellenses.com; cctv.lens@ccom-tech.com
