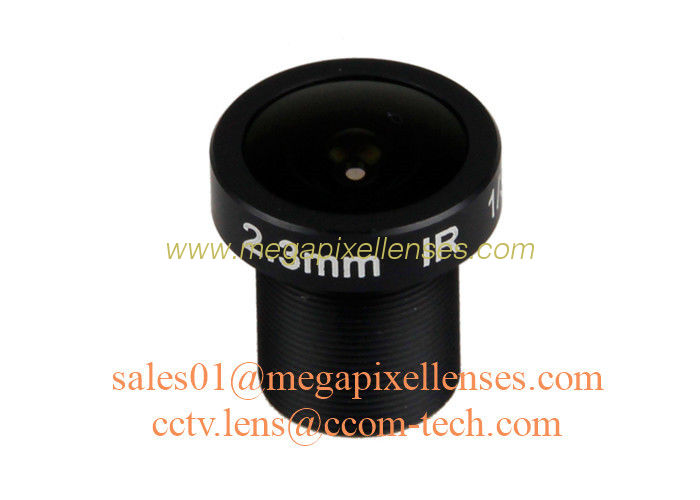

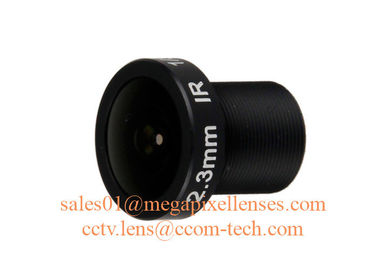

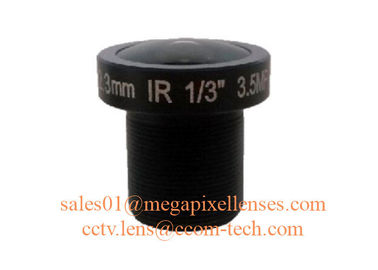

1/3" 2.3mm F2.2 3.5Megapixel M12x0.5 mount 172degree wide angle prime lens for OV4689
 |
Product Details:
| Place of Origin: | China |
| Brand Name: | CCOM LENS |
| Model Number: | 13023MP 13023MPF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100pcs |
|---|---|
| Packaging Details: | Standard |
| Delivery Time: | 2-7 work days |
| Payment Terms: | T/T, Western Union, Moneygram, Paypal |
| Supply Ability: | Samples available |
Detailed Product Description
| Video Lens: | M12 Mount Board Lens | Resolution: | 3.5MP |
|---|---|---|---|
| F.O.V.(D*H*V): | 1/3" 172.2°*126.4°*91.5°; 1/4" 117.2°*91.5°*67.6° | Lens Constructure: | 6G/6G+IR |
1/3" 2.3mm F2.2 3.5Megapixel M12x0.5 mount 172degree wide angle lens, M12 mount wide angle cctv lens for 1/3" 1/4" sensors
MODEL: 13023MP
IMAGE FORMAT 1/3"
MAX IMAGE CIRCLE Φ6mm
FOCAL LENGTH(mm) 2.3
FOV: 1/3" 172.2° (D)*126.4° (H)*91.5° (V); 1/4" 117.2° (D)*91.5° (H)*67.6° (V)
RESOLUTION 3.5MP
APERTURE 2.2
OPTICAL DISTORTION 1/3": -91.30%; 1/4": -41.70%
MOUNT(mm) M12x0.5
IRIS Fixed
B.F.L. 5.18mm
M.B.F. 4.92mm
M.O.D.(m) 0.3
LENS DIMENSION Φ17*18.7mm
IR COLLECTION YES
Tips:
- ***MP: without IR-Cut filter
- ***MPF: with IR-Cut filter
- 650nm/850nm/940nm IR filter optional
- For more lenses, please feel free to contact us at sales01@megapixellenses.com; cctv.lens@ccom-tech.com
