CCOM Electronics Technology Co., Ltd.
CCTV Optical Master to Provide Best Video Solutions
Place of Origin: | China |
Brand Name: | CCOM LENS |
Model Number: | 121616MP |
Minimum Order Quantity: | 100pcs |
---|---|
Packaging Details: | Standard |
Delivery Time: | 2-7 work days |
Payment Terms: | T/T, Western Union, Moneygram, Paypal |
Supply Ability: | Samples available |
Video Lens: | M12 Mount Board Lens | Resolution: | 2MP |
---|---|---|---|
FOV(D*H*V): | 24°*19.1°*16.2° | Lens Constructure: | 4G/4G+IR |
High Definition Wide-Angle Lens
● Compact design popular for Dome and Bullet cameras
● IR-collection for Day & Night surveillance
● Wide-angle with HFOV up to 19.7°
● IR cut option
● Mount option: CS/M12x0.5

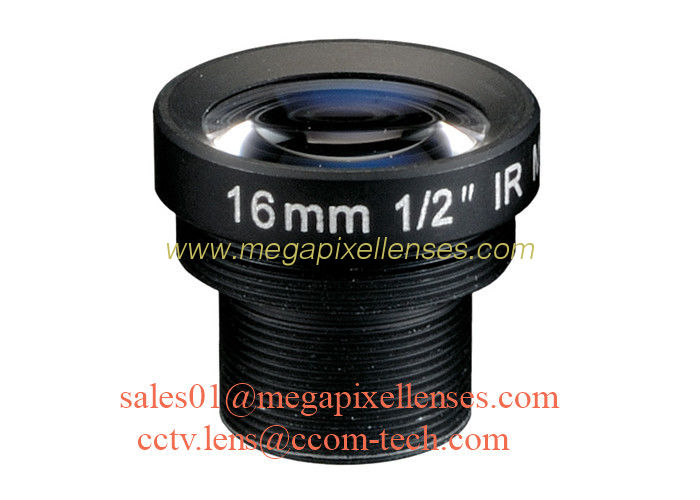

1/2" 16mm F1.6 1080P 2Megapixel S mount M12 24degrees Fixed Focal Lens, 16mm MTV board lens
Model 121616MP
SENSOR 1/2" CCD/CMOS
FOCAL LENGTH 16mm
RESOLUTION MP
F.O.V.(D*H*V) 24°*19.1°*16.2°
APERTURE F1.6
EFFECTIVE APERTURE Φ13.4mm(front), Φ5.4mm(rear)
IRIS Fixed
M.O.D. 0.2m
MOUNT M12XP0.5
B.F.L. 6.59mm
LENS CONSTRUCTURE 4-4
DIMENSION Φ18*15.7mm
Tips:
- ***MP: without IR-Cut filter
- ***MPF: with IR-Cut filter
- 650nm/850nm/940nm IR filter optional
- CS mount available
- For more lenses, please feel free to contact us at sales01@megapixellenses.com; cctv.lens@ccom-tech.com
