CCOM Electronics Technology Co., Ltd.
CCTV Optical Master to Provide Best Video Solutions

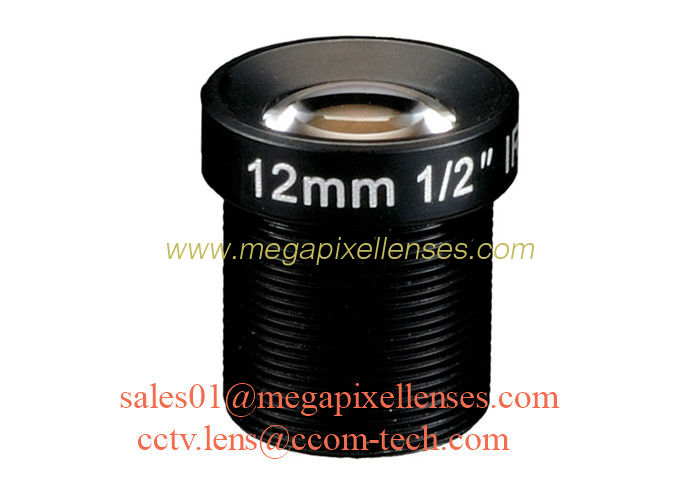

1/2" 12mm F1.6 2Megapixel M12x0.5 mount IR board lens, 12mm MTV lens for security camera
 |
Product Details:
| Place of Origin: | China |
| Brand Name: | CCOM LENS |
| Model Number: | 121216MP |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100pcs |
|---|---|
| Packaging Details: | Standard |
| Delivery Time: | 2-7 work days |
| Payment Terms: | T/T, Western Union, Moneygram, Paypal |
| Supply Ability: | Samples available |
Detailed Product Description
| Video Lens: | M12 Mount Board Lens | Resolution: | 2MP |
|---|---|---|---|
| FOV(D*H*V): | 38.6°*31°*23° | Lens Constructure: | 5G/5G+IR |
High Definition Wide-Angle Lens
● Compact design popular for Dome and Bullet cameras
● IR-collection for Day & Night surveillance
● Wide-angle with HFOV up to 31°
● IR cut option
● Mount option: CS/M12x0.5
1/2" 12mm F1.6 1080P 2Megapixel S mount M12 38degrees Fixed Focal Lens, 12mm MTV board lens
Model 121216MP
SENSOR 1/2" CCD/CMOS
FOCAL LENGTH 12mm
RESOLUTION MP
F.O.V.(D*H*V) 38.6°*31°*23°
APERTURE F1.6
EFFECTIVE APERTURE Φ8.4mm(front), Φ5.6mm(rear)
IRIS Fixed
M.O.D. 0.2m
MOUNT M12XP0.5
B.F.L. 6.54mm
LENS CONSTRUCTURE 5-4
DIMENSION Φ14*15.3mm
Tips:
- ***MP: without IR-Cut filter
- ***MPF: with IR-Cut filter
- 650nm/850nm/940nm IR filter optional
- CS mount available
- For more lenses, please feel free to contact us at sales01@megapixellenses.com; cctv.lens@ccom-tech.com
