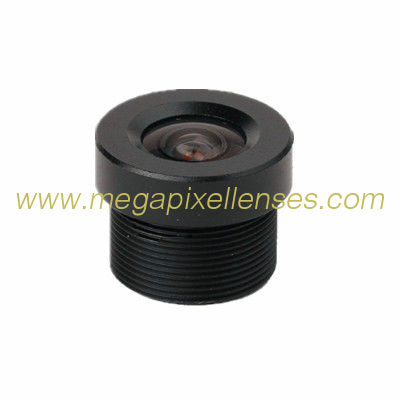

1/2.5" 3mm 5Megapixel S-mount wide angle lens for car recorder DVR

1/2.5" 3mm 5Megapixel S-mount wide angle lens for car recorder DVR

    • 1/2.5" 3mm 5Megapixel S-mount wide angle lens for car recorder DVR
    • 1/2.5" 3mm 5Megapixel S-mount wide angle lens for car recorder DVR
    • 1/2.5" 3mm 5Megapixel S-mount wide angle lens for car recorder DVR
    • 1/2.5" 3mm 5Megapixel S-mount wide angle lens for car recorder DVR
  • 1/2.5" 3mm 5Megapixel S-mount wide angle lens for car recorder DVR

    Product Details:

    Place of Origin: China
    Brand Name: CCOM LENS
    Model Number: 125030MP

    Payment & Shipping Terms:

    Minimum Order Quantity: 100pcs
    Packaging Details: Standard
    Delivery Time: 2-7 work days
    Payment Terms: T/T, Western Union, Moneygram, Paypal
    Supply Ability: Samples available
    Minimum Order Quantity: 100pcs
    Contact Now
    Detailed Product Description

    1/2.5" 3mm 5Megapixel S-mount wide angle lens for car recorder DVR/Law enforcement instrument


    MODEL 125030MP
    IMAGE FORMAT 1/2.5" CCD/CMOS
    FOCAL LENGTH(mm) 3.0
    FOV 122°(D)*100°(H)*95°(V)
    RESOLUTION 5MP
    APERTURE 2.0
    MOUNT(mm) M12x0.5
    B.F.L.(mm) 5.6
    F.B.L.(mm) 5.1
    M.O.D.(m) 0.1
    LENS COMPOMEMT 6G
    DIMENSION Φ14x11mm
