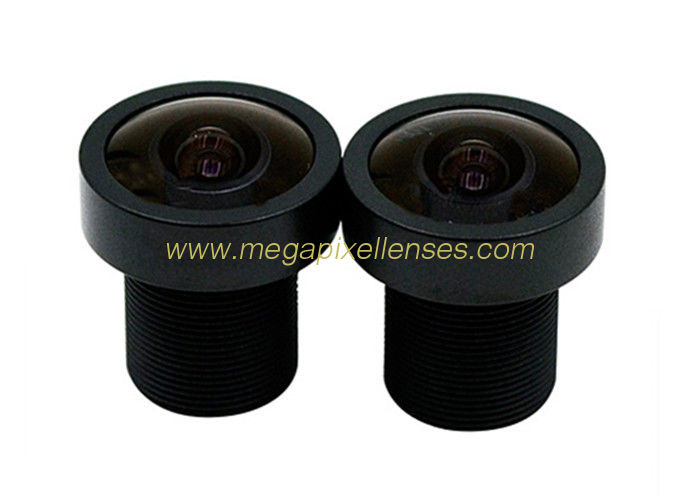

1/2.5" 2.5mm F2.0 1080P 3Megapixel M12x0.5 mount 170degrees wide angle cctv lens

1/2.5" 2.5mm F2.0 1080P 3Megapixel M12x0.5 mount 170degrees wide angle cctv lens

    • 1/2.5" 2.5mm F2.0 1080P 3Megapixel M12x0.5 mount 170degrees wide angle cctv lens
    • 1/2.5" 2.5mm F2.0 1080P 3Megapixel M12x0.5 mount 170degrees wide angle cctv lens
  • 1/2.5" 2.5mm F2.0 1080P 3Megapixel M12x0.5 mount 170degrees wide angle cctv lens

    Product Details:

    Place of Origin: China
    Brand Name: CCOM LENS
    Model Number: 125025MPF-3MP

    Payment & Shipping Terms:

    Minimum Order Quantity: 100pcs
    Packaging Details: Standard
    Delivery Time: 2-7 work days
    Payment Terms: T/T, Western Union, Moneygram, Paypal
    Supply Ability: Samples available
    Contact Now
    Detailed Product Description
    Video Lens: M12 Mount Board Lens Resolution: 3MP
    FOV(D*H*V): 1/2.5”: 170°*130°*95°, 1/2.7”: 150°*120°*90°, 1/3”: 130°*100°*80° Lens Constructure: 6G/6G+IR

    1/2.5" 2.5mm F2.0 1080P 3Megapixel M12x0.5 Mount 170degree wide angle lens for GOPRO HD cams/sport DV/security cameras/vehicle recorders, 2.5mm M12 lens for 1/2.5" 1/2.7" 1/3" sensors, vehicle camera lens



    Model 125025MPF-3MP
    SENSOR FORMAT 1/2.5”
    FOCAL LENGTH 2.5mm ±5%
    RESOLUTION 3MP
    F.O.V. (D*H*V) 1/2.5”: 170°*130°*95°, 1/2.7”: 150°*120°*90°, 1/3”: 130°*100°*80°
    APERTURE F2.0 ±5%
    IRIS Fixed
    M.O.D. 0.1m
    MOUNT M12XP0.5 - 6g
    B.F.L. 5.85mm ±5% (in air)
    F.B.L. 4.25mm ±5%
    T.T.L. 22.51mm
    LENS CONSTRUCTURE 6G+IR



    Tips:
    - ***MP: without IR-Cut filter
    - ***MPF: with IR-Cut filter
    - 650nm/850nm/940nm IR filter optional

    - For more lenses, please feel free to contact us at sales01@megapixellenses.com; cctv.lens@ccom-tech.com
