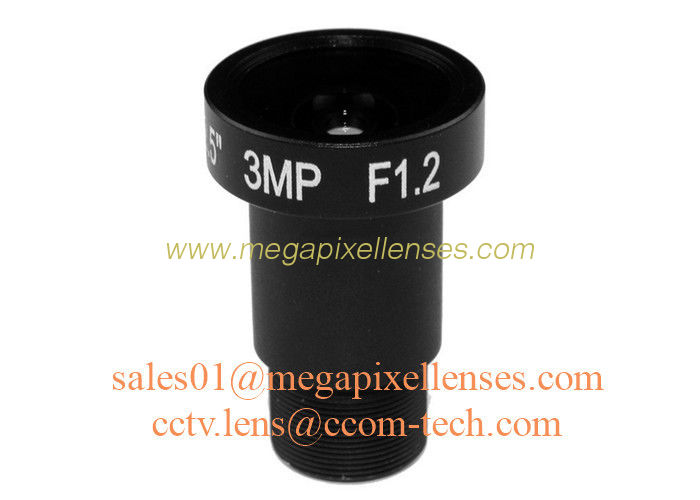

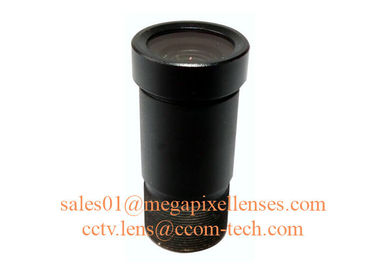

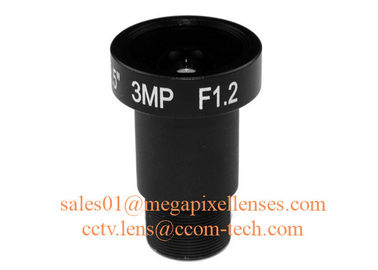

1/2.5" 4.0mm F1.2 3Megapixel M12x0.5 mount low light lens, 4mm starlight M12 board lens

1/2.5" 4.0mm F1.2 3Megapixel M12x0.5 mount low light lens, 4mm starlight M12 board lens

    • 1/2.5" 4.0mm F1.2 3Megapixel M12x0.5 mount low light lens, 4mm starlight M12 board lens
    • 1/2.5" 4.0mm F1.2 3Megapixel M12x0.5 mount low light lens, 4mm starlight M12 board lens
    • 1/2.5" 4.0mm F1.2 3Megapixel M12x0.5 mount low light lens, 4mm starlight M12 board lens
  • 1/2.5" 4.0mm F1.2 3Megapixel M12x0.5 mount low light lens, 4mm starlight M12 board lens

    Product Details:

    Place of Origin: China
    Brand Name: CCOM LENS
    Model Number: 1250412MP

    Payment & Shipping Terms:

    Minimum Order Quantity: 100pcs
    Packaging Details: Standard
    Delivery Time: 2-7 work days
    Payment Terms: T/T, Western Union, Moneygram, Paypal
    Supply Ability: Samples available
    Contact Now
    Detailed Product Description
    Video Lens: M12 Mount Board Lens Resolution: 3MP
    FOV(D*H*V): 1/2.5": 120°×96°×68.4°; 1/2.7": 115.2°×86.4°×63.6°; 1/2.8" IMX290: 111.6°×93.6°×49.2°; 1/3": 100.8°×76.8°×56.4° Lens Constructure: 8G/8G+IR
    Highlight:

    megapixel lens

    ,

    wide angle lens

    ,

    low distortion lens

    Starlight 1/2.5" 4mm F1.2 3megapixel M12x0.5 Mount Board Lens, 4mm light sensitive lens for 1/2.5" 1/2.7" 1/2.8" 1/3" sensors



    Model: 1250412MP
    Focal Length 4mm
    Image Format 1/2.5"

    Max Image Circle Φ6.8
    Aperture(D/f') F1.2
    Mount M12x0.5
    FOV (D×H×V)
    1/2.5": 120°×96°×68.4°; 1/2.7": 115.2°×86.4°×63.6°; 1/2.8" IMX290: 111.6°×93.6°×49.2°; 1/3": 100.8°×76.8°×56.4°
    Optical Distortion -42.80%
    M.O.D 0.15m
    Iris Fixed
    BFL 5.37mm(in air)
    MBF 4.99mm
    IR Correction Yes
    Dimension Φ20×32.2mm



    Tips:
    - ***MP: without IR-Cut filter
    - ***MPF: with IR-Cut filter
    - 650nm/850nm/940nm IR filter optional

    - For more lenses, please feel free to contact us at sales01@megapixellenses.com; cctv.lens@ccom-tech.com
