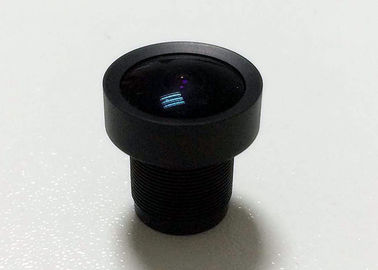

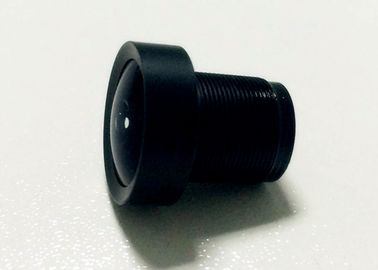

1/3" 2.3mm F2.4 3MP M12x0.5 mount 170degree wide angle board lens for 1/3” 1/4" CCD/CMOS
 |
Product Details:
| Place of Origin: | China |
| Brand Name: | CCOM LENS |
| Model Number: | 13023MP-M12 13023MPF-M12 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100pcs |
|---|---|
| Packaging Details: | Standard |
| Delivery Time: | 2-7 work days |
| Payment Terms: | T/T, Western Union, Moneygram, Paypal |
| Supply Ability: | Samples available |
Detailed Product Description
| Video Lens: | M12 Mount Board Lens | Resolution: | 3MP |
|---|---|---|---|
| FOV(D*H*V): | 1/3”: 170°*145°*86°, 1/4”: 148°*118°*74° | Constructure: | 5G/5G+IR |
| High Light: | wide angle lens,lens supplier,M12x0.5 Board Lens |
||
1/3" 2.3mm 3Megapixel S-mount 170degree wide-angle lens for sport DV/HD action camera/security camera, 2.3mm M12 lens for 1/3" 1/4" sensors
MODEL 13023MPF-M12 (3MP)
SENSOR FORMAT 1/3”
MAX IMAGE CIRCLE Φ6.3mm
FOCAL LENGTH(EFL) 2.3mm
F.O.V. (D*H*V) 1/3”: 170°*145°*86°, 1/4”: 148°*118°*74°
APERTURE F2.4
OPTICAL DISTORTION 1/3”: H -9.75%, 1/4”: H -6.92%
MOUNT M12XP0.5
B.F.L.(O) 4.36mm
B.F.L.(M) 2.16mm
T.T.L. 20.1mm
LENS CONSTRUCTURE 5G+IR
RELATIVE ILLUMINATION 1/3”: >85%, 1/4”: >88%
IR COATING 640+/-8NM AT:50%
Tips:
- ***MP: without IR-Cut filter
- ***MPF: with IR-Cut filter
- 650nm/850nm/940nm IR filter optional
- For more lenses, please feel free to contact us at sales01@megapixellenses.com; cctv.lens@ccom-tech.com
