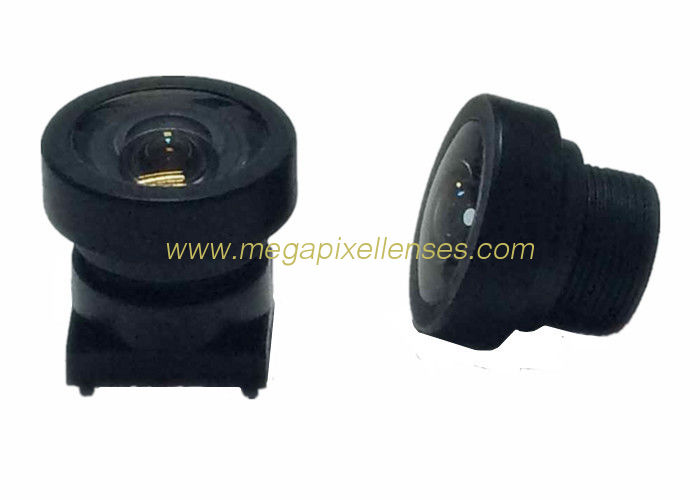

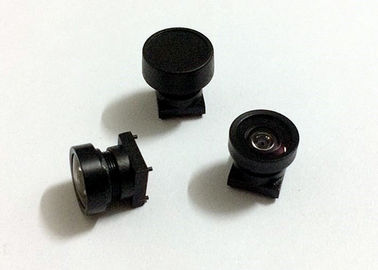

1/4" 1.1mm F2.4 M7x0.35 mount 150degree wide angle lens for OV7725/OV9712/OV7740
 |
Product Details:
| Place of Origin: | China |
| Brand Name: | CCOM LENS |
| Model Number: | 14011-M7 14011F-M7 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100pcs |
|---|---|
| Packaging Details: | Standard |
| Delivery Time: | 2-7 work days |
| Payment Terms: | T/T, Western Union, Moneygram, Paypal |
| Supply Ability: | Samples available |
Detailed Product Description
| Video Lens: | M7 Mount Wide Angle Lens | Resolution: | VGA |
|---|---|---|---|
| F.O.V.(D*H*V): | OV7725: 150°x126°x103° | Constructure: | 2G2P/2G2P+IR |
| High Light: | board lens,M7 mount lens,wide angle lens |
||
1/4" 1.1mm F2.4 M7x0.35 mount 150degree wide angle lens for OV7725/OV9712/OV7740, VGA M7 lens
Model: 14011F-M7
SENSOR SIZE: 1/4"
FOCAL LENGTH(mm): 1.1
F.O.V.(DxHxV): OV7725: 150°x126°x103°, OV9712: 142.5°x126°x91.5, OV7740: 116°x100°x82°
RESOLUTION: VGA
F/NO: 2.4
B.F.L.(mm): 1.85
F.B.L.(mm): 1.45
T.T.L.(mm): 9.19
TV DISTORTION: <-10.8%
MOUNT(mm): M7xP0.35
IRIS: Fixed
LENS COMPOMEMT: 2G+2P+IR cut
C.R.A.: <23°
DIMENSION(mm): Φ10x7.74
Tips:
- 14011-M7: without IR-Cut filter
- 14011F-M7: with IR-Cut filter
- 650nm/850nm/940nm IR filter optional
- For more lenses, please feel free to contact us at sales01@megapixellenses.com; cctv.lens@ccom-tech.com
