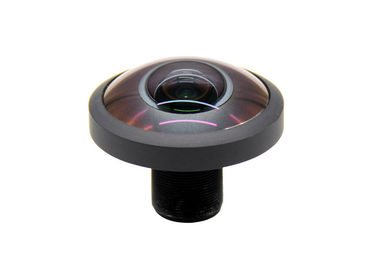

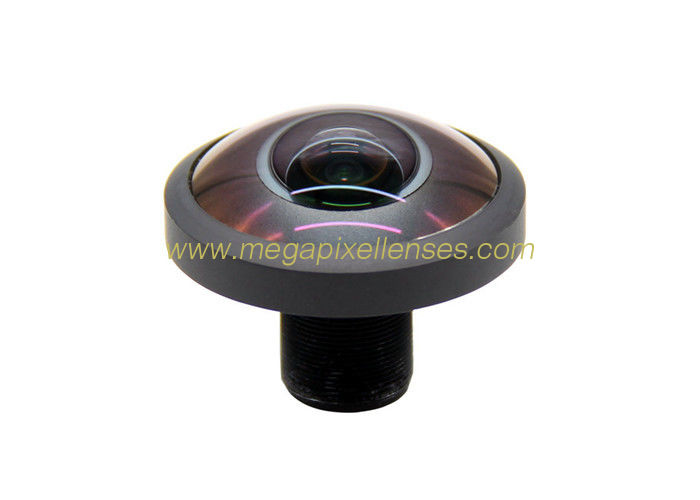

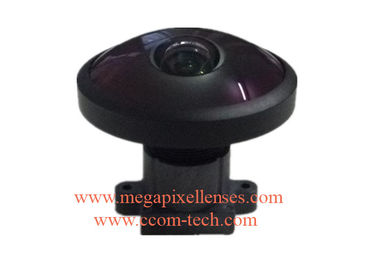

1/3" 1.0mm F1.2 12Megapixel M12x0.5 mount 243degree Fisheye Lens for OV4689, Drone UAV 360VR lens

1/3" 1.0mm F1.2 12Megapixel M12x0.5 mount 243degree Fisheye Lens for OV4689, Drone UAV 360VR lens

    • 1/3" 1.0mm F1.2 12Megapixel M12x0.5 mount 243degree Fisheye Lens for OV4689, Drone UAV 360VR lens
    • 1/3" 1.0mm F1.2 12Megapixel M12x0.5 mount 243degree Fisheye Lens for OV4689, Drone UAV 360VR lens
    • 1/3" 1.0mm F1.2 12Megapixel M12x0.5 mount 243degree Fisheye Lens for OV4689, Drone UAV 360VR lens
    • 1/3" 1.0mm F1.2 12Megapixel M12x0.5 mount 243degree Fisheye Lens for OV4689, Drone UAV 360VR lens
  • 1/3" 1.0mm F1.2 12Megapixel M12x0.5 mount 243degree Fisheye Lens for OV4689, Drone UAV 360VR lens

    Product Details:

    Place of Origin: China
    Brand Name: CCOM LENS
    Model Number: 13010MPF

    Payment & Shipping Terms:

    Minimum Order Quantity: 100pcs
    Packaging Details: Standard
    Delivery Time: 2-7 work days
    Payment Terms: T/T, Western Union, Moneygram, Paypal
    Supply Ability: Samples available
    Contact Now
    Detailed Product Description
    Board Lens: M12 Mount Fisheye Lens Resolution: 12MP
    FOV: 243degree Matrials: Metal + Glass

    1/3" 1.0mm F1.8 12Megapixel M12*0.5 mount 243degree Super Fisheye Lens for OV4689, Drone UAV 360VR lens



    MODEL 13010MPF
    IMAGE FORMAT 1/3"

    IMAGE CIRCLE Φ3.0mm
    FOCAL LENGTH(mm) 1.0
    FOV(D*H*V): 243°*243°*243°
    RESOLUTION 12MP
    APERTURE 1.8
    MOUNT(mm) M12x0.5
    TV DISTORTION <24%
    R.I. >95%
    C.R.A. <0.5°
    IRIS Fixed
    M.O.D.(m) 0.1
    B.F.L.(M) 2.71mm
    T.T.L 28.54mm
    LENS DIMENSION Φ32*25.83mm
    STRUCTURE 6G+IR filter



    Tips:
    - ***MP: without IR-Cut filter
    - ***MPF: with IR-Cut filter
    - 650nm/850nm/940nm IR filter optional

    - For more fisheye lenses, please feel free to contact us at sales01@megapixellenses.com; cctv.lens@ccom-tech.com



    MTF data:

    1/2.3" 1.0mm 12Megapixel S mount M12 243degree Fisheye Lens for IMX078/OV4689, Drone UAV 360VR lens
