1/2" 1.58mm 8Megapixel S-Mount 192degrees IR Fisheye lens 360° panoramic lens

1/2" 1.58mm 8Megapixel S-Mount 192degrees IR Fisheye lens 360° panoramic lens

1/2" 1.58mm 8Megapixel S-Mount 192degrees IR Fisheye lens 360° panoramic lens

Product Details:

Place of Origin: China
Brand Name: CCOM LENS
Model Number: 120158MPF

Payment & Shipping Terms:

Minimum Order Quantity: 100pcs
Packaging Details: Standard
Delivery Time: 2-7 work days
Payment Terms: T/T, Western Union, Moneygram, Paypal
Supply Ability: Samples available
Minimum Order Quantity: 100pcs
Contact Now
Detailed Product Description

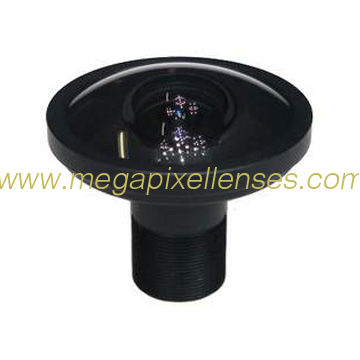

1/2" 1.58mm 8Megapixel S-Mount 192degrees IR Fisheye lens 360° panoramic lens, M12 panoramic lens

MODEL 120158MPF
IMAGE FORMAT 1/2"
FOCAL LENGTH(mm) 1.58
FOV(D*H*V) 192°*192°*180°
RESOLUTION 8MP
APERTURE 3.0
OPTICAL DISTORTION >100%
MOUNT(mm) M12x0.5
IRIS/FOCUS/ZOOM Fixed
M.O.D.(m) 0.15
OPTICAL B.F.L.(mm) 3.41
MECHANICAL B.F.L.(mm) 3.00
T.T.L.(mm) 30.5
R.I. >95%
DIMENSION(mm) Φ32x27.5
LENS COMPOMEMT 8G+IR(650nm)
