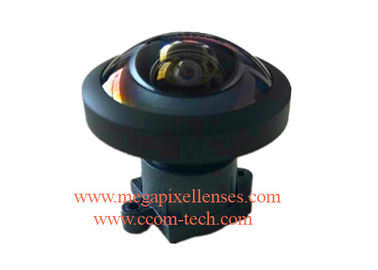

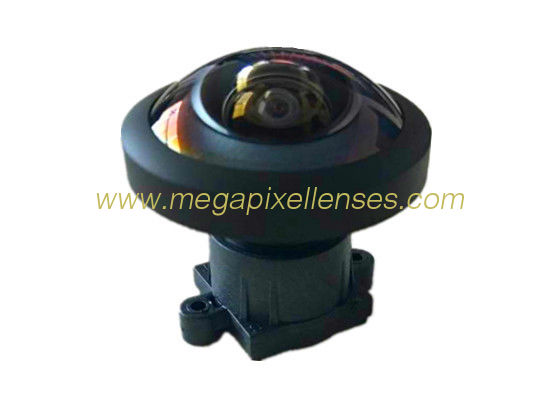

1/2.3" 1.55mm 12Megapixel M12X0.5 mount 206degree Fisheye Lens for IMX078
 |
Product Details:
| Place of Origin: | China |
| Brand Name: | CCOM LENS |
| Model Number: | 1230155MPF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100pcs |
|---|---|
| Packaging Details: | Standard |
| Delivery Time: | 2-7 work days |
| Payment Terms: | T/T, Western Union, Moneygram, Paypal |
| Supply Ability: | Samples available |
Detailed Product Description
| Board Lens: | M12 Mount Fisheye Lens | Resolution: | 12MP |
|---|---|---|---|
| FOV: | 206degree | Matrials: | Metal + Glass |
| Highlight: | Fisheye lens,lens supplier,M12x0.5 Board Lens |
||
ECONOMIC 1/2.3" 1.55mm F2.2 12Megapixel M12*0.5 mount 206degree Super Fisheye Lens for IMX078, Drone UAV 360VR lens
MODEL 1230155MPF
IMAGE FORMAT 1/2.3" (max. image circle Φ4.5)
FOCAL LENGTH(mm) 1.55
FOV: 206°(D)*206°(H)*206°(V)
RESOLUTION 16MP
APERTURE 2.2
MOUNT(mm) M12x0.5
IRIS Fixed
F-theta distortion <+1.7%
M.BFL(mm) 1.72
T.T.L.(mm) 22.66
R.I. >95%
C.R.A. <16°
DIMENSION(mm) Φ27x21.94
LENS COMPOMEMT 8G+IR
Tips:
- ***MP: without IR-Cut filter
- ***MPF: with IR-Cut filter
- 650nm/850nm/940nm IR filter optional
- For more fisheye lenses, please feel free to contact us at sales01@megapixellenses.com; cctv.lens@ccom-tech.com
