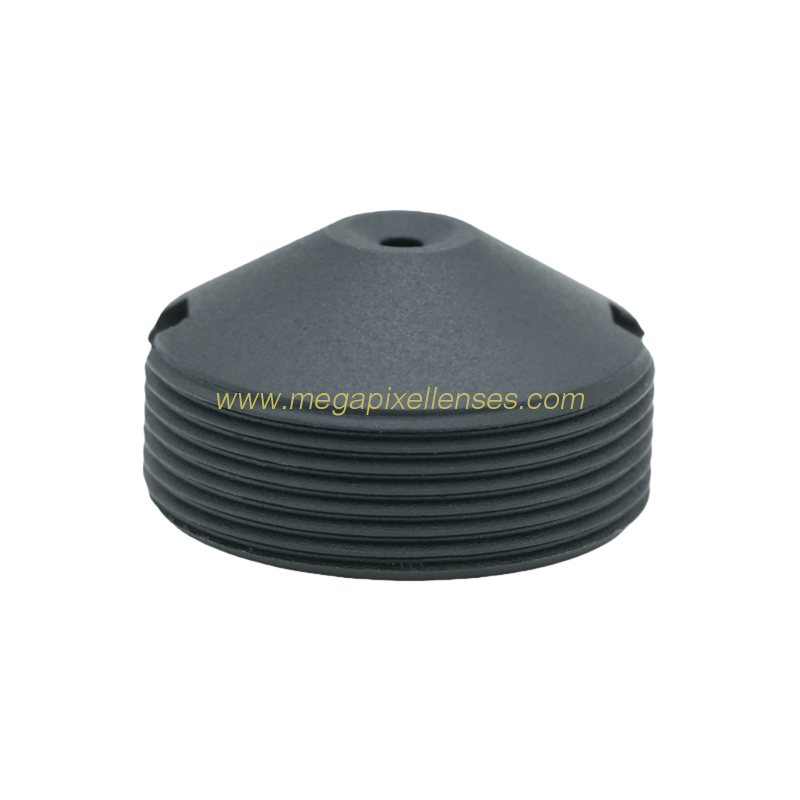

1/4" 2.9mm F3.4 2Megapixle M12x0.5 Mount Sharp Cone Pinhole Lens for covert cameras
 |
Product Details:
| Place of Origin: | China |
| Brand Name: | CCOM LENS |
| Model Number: | 14029PMP 14029PMPF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100pcs |
|---|---|
| Packaging Details: | Standard |
| Delivery Time: | 4-8 work days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | Samples available |
Detailed Product Description
| CCTV Lens: | M12 Mount Pinhole Lens | Focal Length: | 2.9mm Pinhole Lens |
|---|---|---|---|
| Resolution: | Megapixel | Structure: | 3G/3G+IR |
1/4" 2.9mm F3.4 2Megapixle M12x0.5 mount Sharp Cone Pinhole Lens for covert cameras
MODEL 14029PMP
SENSOR FORMAT 1/4" CCD/CMOS
MAX IMAGE CIRCLE Φ4.65mm
FOCAL LENGTH 2.9mm
RESOLUTION 2MP
F.O.V.(DxHxV) 119°x81.6°x58°
APERTURE F3.4
TV DISTORTION -14.27%
IRIS Fixed
MOUNT M12XP0.5
C.R.A. <6.63°
R.I. 30%
M.B.F.L. 2.46mm
T.T.L. 8.90mm
LENS CONSTRUCTURE 3G
DIMENSION Φ12x6.44mm
Tips:
- 650nm/850nm/940nm IR filter optional
- For more lenses, please feel free to contact us at sales01@megapixellenses.com; cctv.lens@foxmail.com
