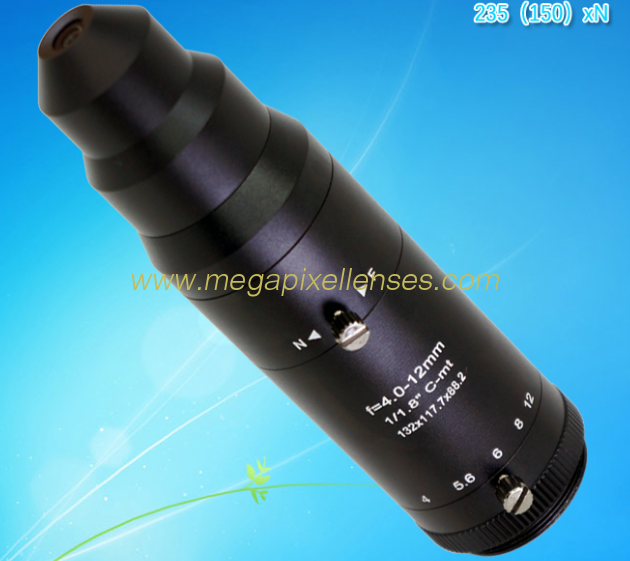

High-temp. 1/1.8" 4-12mm F2.4 Megapixel C Mount Manual Focus/Zoom Pinhole Lens for Metallurgy, furnace lens
 |
Product Details:
| Place of Origin: | China |
| Brand Name: | CCOM LENS |
| Model Number: | 1180412PMP-C |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100pcs |
|---|---|
| Packaging Details: | Standard |
| Delivery Time: | 5-7 work days |
| Payment Terms: | T/T, Western Union, , Paypal |
| Supply Ability: | Samples available |
Detailed Product Description
| Metallurgical Lens: | C Mount Pinhole Lens | Focal Length: | 4~12mm Pinhole Lens |
|---|---|---|---|
| Resolution: | MP | Materials: | Metal + Glass |
High temperature metallurgical lens 1/1.8" 4~12mm F2.4 Megapixle C Mount Manual Zoom/Focus Pinhole Lens, special varifocal pinhole lens
MODEL 1180412PMP-C
SENSOR FORMAT 1/1.8”
FOCAL LENGTH 4-12mm
F.O.V. (DxHxV) W 132°x117.7°x88.2°, T 36.1°x29.2°x22.2°
APERTURE F2.4
RESOLUTION 100lp/mm
FOCUS Manual with lock (W/Lock)
ZOOM Manual with lock (W/Lock)
W.D. 0.2m
MOUNT C
B.F.L. 17.53mm
CONSTRUCTURE Aluminium Alloy+12G, or +5Gxn
NET WEIGHT Lens 120g, or +extender 188g/235mm, 120g/150mm
WAVELENGTH 450-700nm
DIMENSION Φ29x101.5mm (can add extender 235mm/150mm)
Tips:
- Lens is extendable with the special extender
- Extender options: 235mm or 150mm
- For more lenses, please feel free to contact us at sales01@megapixellenses.com; cctv.lens@foxmail.com
