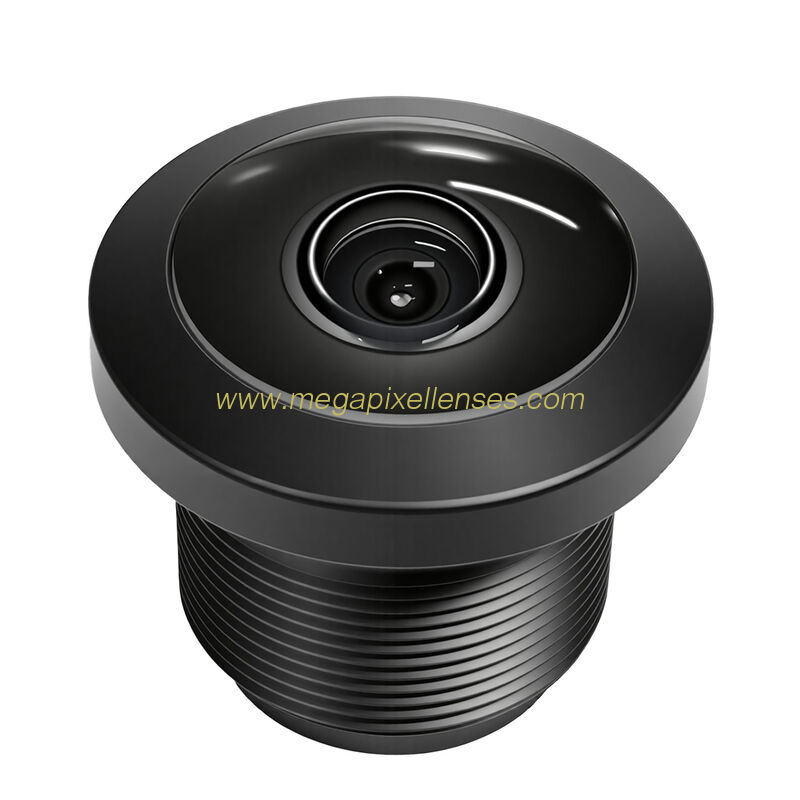

1/2.9" 1.1mm F1.8 Megapixel 215Degree M12x0.5 mount fisheye lens S mount wide angle lens
 |
Product Details:
| Place of Origin: | China |
| Brand Name: | CCOM LENS |
| Model Number: | 129011MP 129011MPF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100pcs |
|---|---|
| Packaging Details: | Standard |
| Delivery Time: | 3-10 work days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | Samples available |
Detailed Product Description
| Video Lens: | M12 Mount Board Lens | Resolution: | Megapixel |
|---|---|---|---|
| F.O.V.(D*H*V): | 215°*215°*215° | Lens Constructure: | 6G/6G+IR |
1/2.9" 1.1mm F1.8 Megapixel 215D M12x0.5 mount fisheye lens for 1/2.9" 1/3" 1/4" sensors
MODEL 129011MPF
IMAGE FORMAT 1/2.9"
MAX IMAGE CIRCLE Φ3.05mm
FOCAL LENGTH(mm) 1.1
FOV 215°(D)*215° (H)*215° (V)
RESOLUTION MP
APERTURE F1.8
OPTICAL DISTORTION -143%
TV DISTORTION -
MOUNT(mm) M12x0.5
IRIS Fixed
F.B.F.L. 2.60mm
T.T.L. 17.10mm
LENS DIMENSION Φ16*14.60mm
Structure 6G+IR
Tips:
- ***MP: without IR-Cut filter
- ***MPF: with IR-Cut filter
- 650nm/850nm/940nm IR filter optional
- For more lenses, please feel free to contact us at sales01@megapixellenses.com; cctv.lens@foxmail.com
