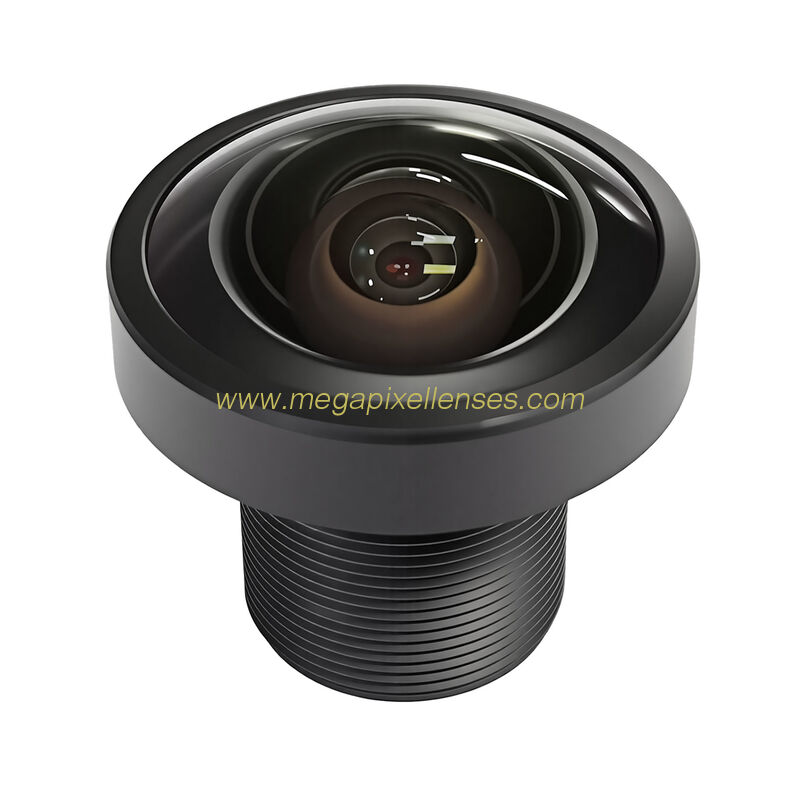

1/1.8" 2.3mm F2.6 8Megapixel 200Degree M12x0.5 mount fisheye lens 4K S mount lens
 |
Product Details:
| Place of Origin: | China |
| Brand Name: | CCOM LENS |
| Model Number: | 118023MP 118023MPF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100pcs |
|---|---|
| Packaging Details: | Standard |
| Delivery Time: | 3-10 work days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | Samples available |
Detailed Product Description
| Video Lens: | M12 Mount Board Lens | Resolution: | 8MP |
|---|---|---|---|
| F.O.V.(D*H*V): | 200°*200°*109° | Lens Constructure: | 8G/8G+IR |
1/1.8" 2.3mm F2.6 8Megapixel 200D M12x0.5 mount fisheye lens, 4K S mount cctv lens
MODEL: 118023MPF
IMAGE FORMAT 1/1.8
MAX IMAGE CIRCLE Φ7.8mm
FOCAL LENGTH(mm) 2.3
FOV: 200°(D)*200° (H)*109° (V)
RESOLUTION 8MP
APERTURE 2.6
OPTICAL DISTORTION
TV DISTORTION -4.45%
MOUNT(mm) M12x0.5
IRIS Fixed
F.B.F.L. 2.80mm
B.F.L. 3.82mm
T.T.L. 21.84mm
C.R.I. 9°
R.I. >66%
LENS DIMENSION Φ20*19.04mm
Structure 8G+IR
Tips:
- ***MP: without IR-Cut filter
- ***MPF: with IR-Cut filter
- 650nm/850nm/940nm IR filter optional
- For more lenses, please feel free to contact us at sales01@megapixellenses.com; cctv.lens@foxmail.com
