CCOM Electronics Technology Co., Ltd.
CCTV Optical Master to Provide Best Video Solutions
Place of Origin: | China |
Brand Name: | CCOM LENS |
Model Number: | 1270414MP-2MP |
Minimum Order Quantity: | 100pcs |
---|---|
Packaging Details: | Standard |
Delivery Time: | 2-7 work days |
Payment Terms: | T/T, Western Union, Moneygram, Paypal |
Supply Ability: | Samples available |
Video Lens: | M12 Mount Board Lens | Resolution: | 2MP |
---|---|---|---|
FOV(D*H*V): | 109.08°x90.9°x48° | Lens Constructure: | 1G5P |

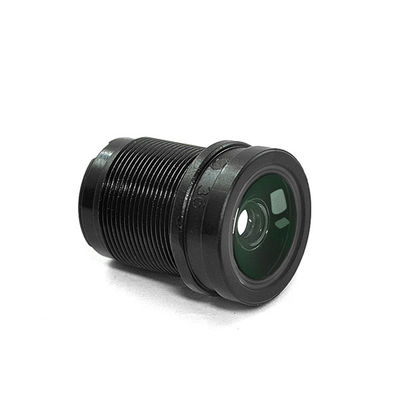

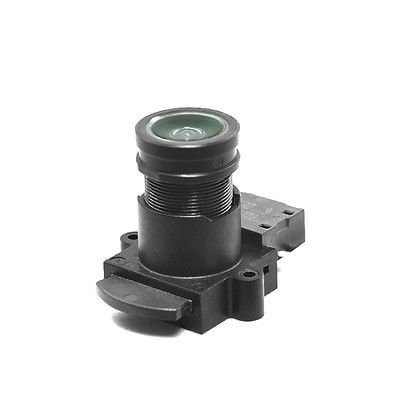

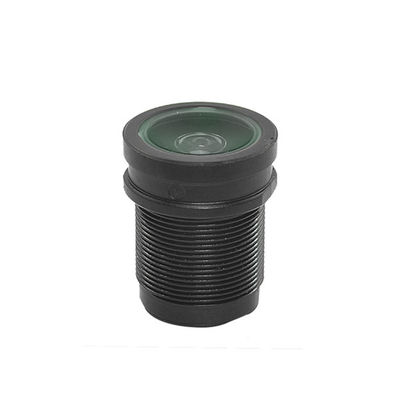

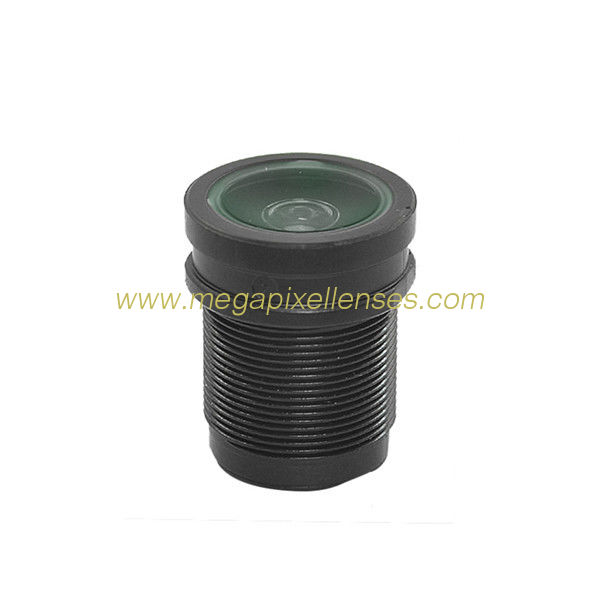

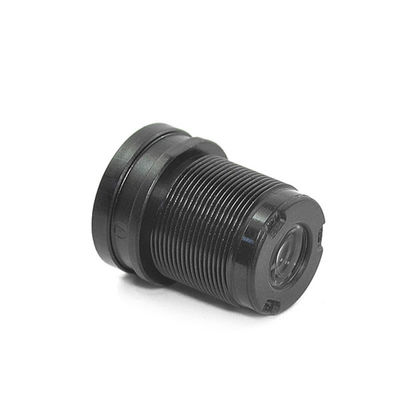

Starlight 1/2.7" 4mm F1.4 2Megapixel M12x0.5 mount board lens for 1/2.7" 1/2.8" 1/2.9" 1/3" 1/4" sensors
Model 1270414MP-2MP
IMAGE FORMAT 1/2.7” CCD/CMOS (Φ6.9mm)
FOCAL LENGTH 4mm ±5%
F.O.V (D/H/V)
1/2.7" 109.08°x 90.9°x 48°
1/2.8" 104.5°x87.6°x46.4°
1/2.9" 100.14°x84.2°x45°
RESOLUTION 2MP
APERTURE F1.4 ±5%
TV DISTORTION <-12.5% (1/2.7” Full)
MOUNT M12×0.5
IRIS Fixed
M.O.D. 0.2m
F.B.L. 5.0mm (in air)
T.T.L. 22.23mm (in air)
R.I. ≥45%
C.R.A. <12° CONSTRUCTURE 1G5P
DIMENSION Φ14×17.23mm
OPERATING TEMP. -20℃ ~ 60℃
Tips:
- IR-cut filter switch/IR-cut holder optional
- For more lenses, please feel free to contact us at sales01@megapixellenses.com; cctv.lens@ccom-tech.com
