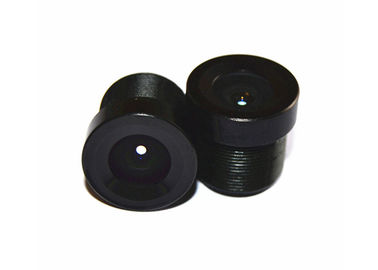

1/4" 2.8mm F2.4/F2.0 Megapixel M12x0.5 mount board lens for JX-H42/OV9712, 2.8mm cctv lens
 |
Product Details:
| Place of Origin: | China |
| Brand Name: | CCOM LENS |
| Model Number: | 14028MPF(A) |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100pcs |
|---|---|
| Packaging Details: | Standard |
| Delivery Time: | 2-7 work days |
| Payment Terms: | T/T, Western Union, Moneygram, Paypal |
| Supply Ability: | Samples available |
Detailed Product Description
| Video Lens: | M12 Mount Board Lens | Resolution: | Megapixel |
|---|---|---|---|
| FOV(D*H*V): | JX-H42: 101.6°*85.2°*50.5°, OV9712: 110°*85.2°*51.2° | Constructure: | 5G/5G+IR |
1/4" 2.8mm F2.4 Megapixel M12x0.5 mount board lens for JX-H42/OV9712, 2.8mm 110degree cctv lens
MODEL 14028MPF(A)
SENSOR FORMAT 1/4"
SENSOR JX-H42 & OV9712
MAX IMAGE CIRCLE Φ5.8mm
FOCAL LENGTH(EFL) 2.8mm
F.O.V. (D*H*V) JX-H42: 101.6°*85.2°*50.5°, OV9712: 110°*85.2°*51.2°
RESOLUTION 1.3MP
APERTURE F2.4/F2.0(OV9712)
OPTICAL DISTORTION JX-H42: H -8.7%, V -24.68%; OV9712: H -8.2%, V -25%
MOUNT M12X0.5
B.F.L.(O) 5.27mm
B.F.L.(M) 2.98mm
T.T.L. 16.57mm
LENS CONSTRUCTURE 5G+IR
DIMENSION(mm) Φ14x13.59
RELATIVE ILLUMINATION JX-H42: >84%; OV9712: >82.9%
IR COATING 640±8NM AT: 50%
CHIEF RAT ANGLE JX-H42: <19.97°; 1/4” OV9712: <13.2°
Tips:
- ***MP: without IR-Cut filter
- ***MPF: with IR-Cut filter
- 650nm/850nm/940nm IR filter optional
- For more lenses, please feel free to contact us at sales01@megapixellenses.com; cctv.lens@ccom-tech.com
