Home ProductsMegapixel Low Distortion Lenses

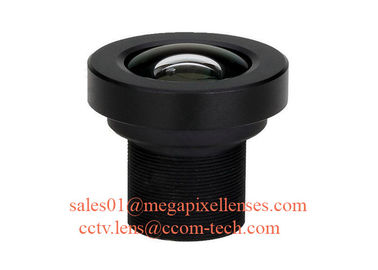

1/1.8" 5mm 10MP M12/CS mount low-distortion 4K UHR lens lens for AR0521/IMX274/IMX226/IMX178/IMX172

1/1.8" 5mm 10MP M12/CS mount low-distortion 4K UHR lens lens for AR0521/IMX274/IMX226/IMX178/IMX172

    • 1/1.8" 5mm 10MP M12/CS mount low-distortion 4K UHR lens lens for AR0521/IMX274/IMX226/IMX178/IMX172
    • 1/1.8" 5mm 10MP M12/CS mount low-distortion 4K UHR lens lens for AR0521/IMX274/IMX226/IMX178/IMX172
    • 1/1.8" 5mm 10MP M12/CS mount low-distortion 4K UHR lens lens for AR0521/IMX274/IMX226/IMX178/IMX172
    • 1/1.8" 5mm 10MP M12/CS mount low-distortion 4K UHR lens lens for AR0521/IMX274/IMX226/IMX178/IMX172
  • 1/1.8" 5mm 10MP M12/CS mount low-distortion 4K UHR lens lens for AR0521/IMX274/IMX226/IMX178/IMX172

    Product Details:

    Place of Origin: China
    Brand Name: CCOM LENS
    Model Number: 11805MP-M12 11805MP-CS

    Payment & Shipping Terms:

    Minimum Order Quantity: 100pcs
    Packaging Details: Standard
    Delivery Time: 2-7 work days
    Payment Terms: T/T, Western Union, Moneygram, Paypal
    Supply Ability: Samples available
    Contact Now
    Detailed Product Description
    Video Lens: M12/CS Mount Low-distortion Lens Resolution: 4K/10MP
    Distortion: <-8% Materials: Metal+Glass, 8G/8G+IR

    1/1.8" 1/2" 5mm F2.2 10Megapixel IR low distortion lens, M12 mount ultra high resolution wide angle cctv lens for sensors OV0521, MT9P006, IMX274, IMX226, IMX178, IMX172 etc.



    Model 11805MP-M12 11805MP-CS
    IMAGE FORMAT 1/1.8" & 1/2" 1/1.8" & 1/2"
    FOCAL LENGTH 5.0mm 5.0mm
    H. F.O.V 72° 72°
    FOV on different sensor

    11805MP-M12:1/1.8" 1/2" 5mm 10Megapixel M12/CS mount low-distortion IR lens, 4K UHR lens for AR0521/IMX274/IMX226/IMX178/IMX172



    11805MP-CS:

    1/1.8" 1/2" 5mm 10Megapixel M12/CS mount low-distortion IR lens, 4K UHR lens for AR0521/IMX274/IMX226/IMX178/IMX172

    RESOLUTION

    10MP



    1/1.8" 1/2" 5mm 10Megapixel M12/CS mount low-distortion IR lens, 4K UHR lens for AR0521/IMX274/IMX226/IMX178/IMX172



    1/1.8" 1/2" 5mm 10Megapixel M12/CS mount low-distortion IR lens, 4K UHR lens for AR0521/IMX274/IMX226/IMX178/IMX172

    TV DISTORTION < -8% < -8%
    C.R.A. <9° <9°
    APERTURE F2.2 F2.2
    MOUNT M12X0.5 CS
    IRIS Fixed Fixed
    M.O.D. 0.3m -
    B.F.L. 8.5mm (in air) 8.5mm (in air)
    T.T.L. 32.9mm (in air) 34.0mm
    STRUCTURE 8G / 8G+IR 8G
    DIMENSION (mm) Φ20(D)*24.38(L) Φ30(D)*25.97(L)





    Tips:

    - M12/CS mount option

    - Old model no. was 1205MP.
    - ***MP: without IR-Cut filter (Only for M12 version)
    - ***MPF: with IR-Cut filter (Only for M12 version)
    - 650nm/850nm/940nm IR filter optional (Only for M12 version)

    - For more lenses, please feel free to contact us at sales01@megapixellenses.com; cctv.lens@ccom-tech.com
