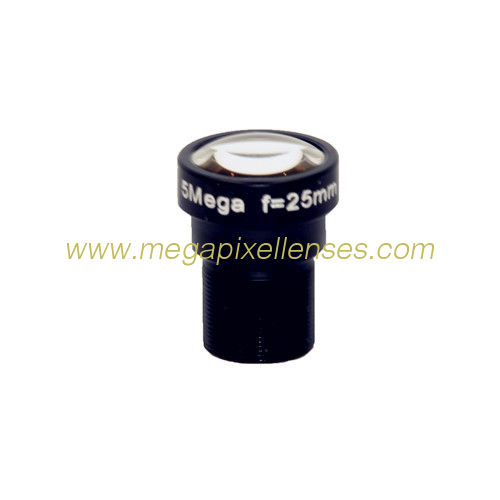

2/3" 25mm F1.7 5Megapixel M12x0.5 mount low distortion MTV board lens, 25mm MTV lens

2/3" 25mm F1.7 5Megapixel M12x0.5 mount low distortion MTV board lens, 25mm MTV lens

    • 2/3" 25mm F1.7 5Megapixel M12x0.5 mount low distortion MTV board lens, 25mm MTV lens
    • 2/3" 25mm F1.7 5Megapixel M12x0.5 mount low distortion MTV board lens, 25mm MTV lens
    • 2/3" 25mm F1.7 5Megapixel M12x0.5 mount low distortion MTV board lens, 25mm MTV lens
  • 2/3" 25mm F1.7 5Megapixel M12x0.5 mount low distortion MTV board lens, 25mm MTV lens

    Product Details:

    Place of Origin: China
    Brand Name: CCOM LENS
    Model Number: 232517MP 232517MPF

    Payment & Shipping Terms:

    Minimum Order Quantity: 100pcs
    Packaging Details: Standard
    Delivery Time: 2-7 work days
    Payment Terms: T/T, Western Union, Moneygram, Paypal
    Supply Ability: Samples available
    Contact Now
    Detailed Product Description
    Board Lens: M12 Mount Low-distortion Lens Resolution: 5MP
    Distortion: <-1% Constructure: 6G/6G+IR

    2/3" 25mm F1.7 5Megapixel S-mount M12x0.5 mount Low-distortion Board Lens, 25mm 5MP MTV Lens for high spot meter/scanner



    Model: 232517MP
    Sensor: 2/3"
    Focal length: 25mm
    F/No.: 1.7

    F.O.V. (DxHxV): 24.7°x19.9°x15°
    Optical Distortion: <-1%
    Mount: M12xP0.5
    Resolution 5MP

    M.O.D.: 0.5m
    F.B.L.: 5.20mm
    TTL: 27.90mm

    Constructure: 6G
    Lens Dimension: Φ17x22.7mm



    Tips:
    - ***MP: without IR-Cut filter
    - ***MPF: with IR-Cut filter
    - 650nm/850nm/940nm IR filter optional

    - For more lenses, please feel free to contact us at sales01@megapixellenses.com; cctv.lens@ccom-tech.com
