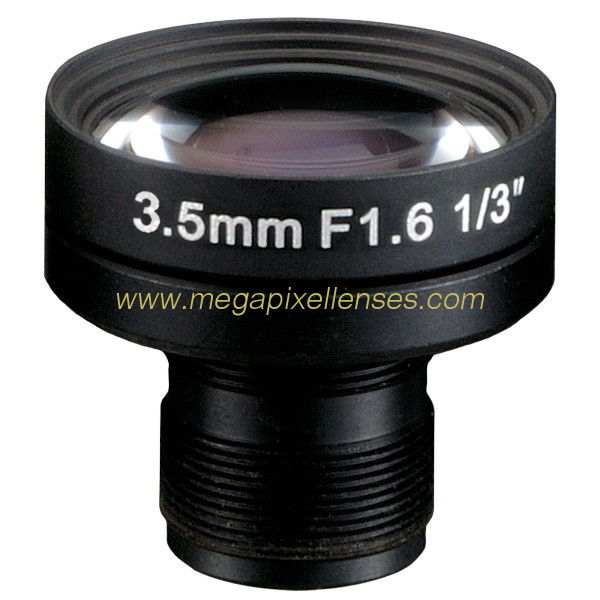

1/3" 3.5mm Megapixel F1.6 S mount M12x0.5 Mount Non-Distortion IR Board Lens
 |
Product Details:
| Place of Origin: | China |
| Brand Name: | CCOM LENS |
| Model Number: | 1303516MP 1303516MPF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100pcs |
|---|---|
| Packaging Details: | Standard |
| Delivery Time: | 2-7 work days |
| Payment Terms: | T/T, Western Union, Moneygram, Paypal |
| Supply Ability: | Samples available |
Detailed Product Description
| Board Lens: | M12 Mount Low-distortion Lens | Resolution: | Megapixel |
|---|---|---|---|
| Distortion: | <-2.2% | Lens Constructure: | 8G/8G+IR |
Non distortion Lens
● High definition <3% low distortion lens
● High resolution compatible with 1.3-5 Mega-pixel cameras
● Broad band confocal design suitable for both Visible and NIR applications
● Compact design ideal for integration
● Cost-effective for recognition applications
1/3" 3.5mm Megapixel F1.6 M12*0.5 Mount S-Mount Non-Distortion IR Board Lens
Model 1303516MP
Image Format 1/3″
Focal Length 3.5mm
Aperture F1.6
Resolution MP
Horizontal Angle of View 68°
Distortion -2.2%
Mount Type M12*0.5
Minimum Object Distance 0.2m
Back Focal Length 5.99mm
Iris Fixed
Constructure 8-7
External Dimensions(mm) Φ22(D)*21.5(L)
Tips:
- ***MP: without IR-Cut filter
- ***MPF: with IR-Cut filter
- 650nm/850nm/940nm IR filter optional
- For more lenses, please feel free to contact us at sales01@megapixellenses.com; cctv.lens@ccom-tech.com
