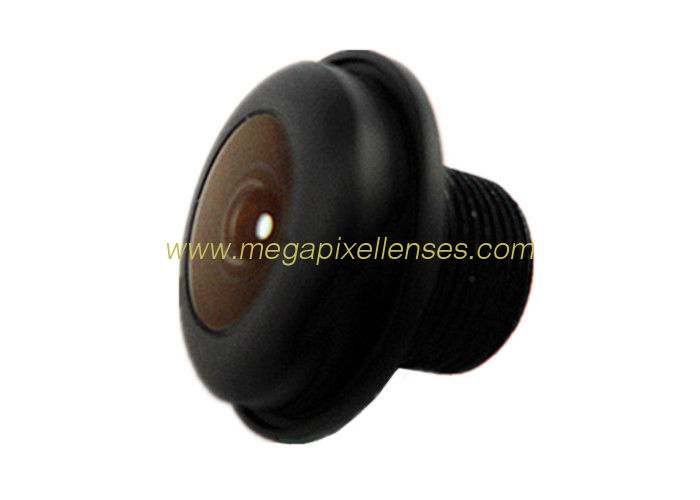

1/4" 1.7mm F2.0 M8 mount 170degree wide-angle lens for vehicle cctv, automotic camera lens
 |
Product Details:
| Place of Origin: | China |
| Brand Name: | CCOM LENS |
| Model Number: | 14017-M8 14017F-M8 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100pcs |
|---|---|
| Packaging Details: | Standard |
| Delivery Time: | 2-7 work days |
| Payment Terms: | T/T, Western Union, Moneygram, Paypal |
| Supply Ability: | Samples available |
Detailed Product Description
| Video Lens: | M8 Mount Wide Angle Lens | Resolution: | VGA |
|---|---|---|---|
| FOV(D): | 170° | Matrials: | Metal + Glass |
| High Light: | Automobile data recorder lens,wide angle lens,M8x0.5 Board Lens |
||
1/4" 1.7mm F2.0 M8x0.5 Mount 170degree Wide-Angle Lens Automatic Camera Lens, 1.7mm Mini Fisheye Lens for 180º 360º panoramic cameras, M8/M12 mount option
MODEL 14017-M8
IMAGE FORMAT 1/4"
FOCAL LENGTH(mm) 1.7
FOV(D) 170°
RESOLUTION 0.3MP/VGA
APERTURE 2.0
MOUNT(mm) M8x0.5 (M8x0.35 optional)
IRIS Fixed
M.O.D.(m) 0.3
B.F.L.(mm) 3.25
F.B.L.(mm) 1.9 (in air)
T.T.L.(mm) 13.5
DIMENSION(mm) Φ14x11.7
Tips:
- 14017-M8: without IR-Cut filter
- 14017F-M8: with IR-Cut filter
- 650nm/850nm/940nm IR filter optional
- M8/M12 mount option
- Waterproof version is available.
- For more lenses, please feel free to contact us at sales01@megapixellenses.com; cctv.lens@ccom-tech.com
