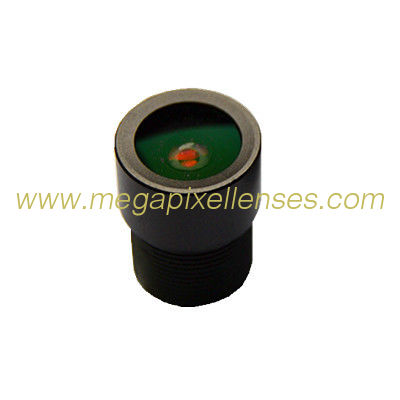

1/2.7" 3.65mm 5Megapixel M9x0.5 mount 120Degree wide angle lens for OV4689/OV2710/IMX122/AR0330

1/2.7" 3.65mm 5Megapixel M9x0.5 mount 120Degree wide angle lens for OV4689/OV2710/IMX122/AR0330

    • 1/2.7" 3.65mm 5Megapixel M9x0.5 mount 120Degree wide angle lens for OV4689/OV2710/IMX122/AR0330
    • 1/2.7" 3.65mm 5Megapixel M9x0.5 mount 120Degree wide angle lens for OV4689/OV2710/IMX122/AR0330
    • 1/2.7" 3.65mm 5Megapixel M9x0.5 mount 120Degree wide angle lens for OV4689/OV2710/IMX122/AR0330
  • 1/2.7" 3.65mm 5Megapixel M9x0.5 mount 120Degree wide angle lens for OV4689/OV2710/IMX122/AR0330

    Product Details:

    Place of Origin: China
    Brand Name: CCOM LENS
    Model Number: 1270365MP-M9 1270365MPF-M9

    Payment & Shipping Terms:

    Minimum Order Quantity: 100pcs
    Packaging Details: Standard
    Delivery Time: 2-7 work days
    Payment Terms: T/T, Western Union, Moneygram, Paypal
    Supply Ability: Samples available
    Contact Now
    Detailed Product Description
    Video Lens: M9x0.5 Mount Wide Angle Lens Resolution: 5MP
    FOV(DxHxV): 120°x96.5°x52.2° Lens Constructure: 6G/6G+IR

    1/2.7" 3.65mm F2.0 5Megapixel M9x0.5 mount 120Degree Wide Angle Video Lens for 1/2.5" ~ 1/4" sensors, OV4689/OV2710/IMX122/OV8858 wide angle lens, megapixel wide-angle lens for sport DV/Car DVR, able to match 1/2.3" & 1/2.5" HD sensors



    MODEL 1270365MPF-M9
    SENSOR SIZE 1/2.7" ~ 1/4" CMOS/CCD
    MAX IMAGE CIRCLE Ø 8.2mm (
    able to match 1/2.3", 1/2.5" HD sensors)
    FOCAL LENGTH 3.65mm

    F.O.V. (D*H*V) MI5100 H=93.6° V=68.6° D=121.6°, OV2710 H=96.5° V=52.2° D=120°, OV4689 H=90° V=50° D=110°, AR0330 H=83.1° V=47° D=105°, IMX122 H=89° V=55° D=115°
    RESOLUTION 5MP
    APERTURE F2.0
    TV DISTORTION <-10%
    MOUNT M9x0.5
    B.F.L.(O) 5.48mm
    B.F.L.(M) 2.80mm
    T.T.L. 15.91mm

    DIMENSION Φ10x13.17mm

    LENS CONSTRUCTURE 6G+IR



    Tips:
    - ***MP: without IR-Cut filter
    - ***MPF: with IR-Cut filter
    - 650nm/850nm/940nm IR filter optional

    - M12/M9 mount option

    - For more lenses, please feel free to contact us at sales01@megapixellenses.com; cctv.lens@ccom-tech.com
