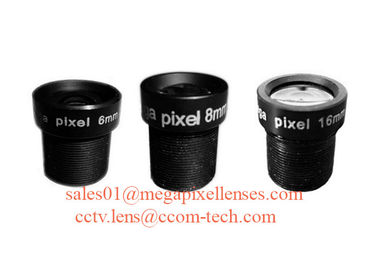

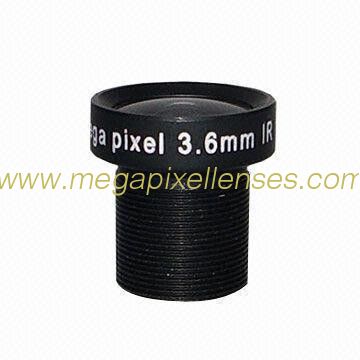

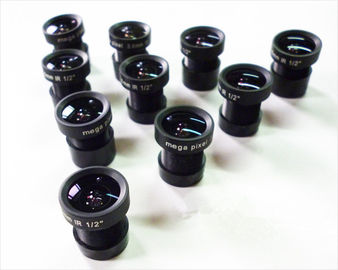

1/2" 3.6mm/6mm/8mm/16mm F2.0 3MP 1080P M12x0.5 Mount Board Lens for security camera

1/2" 3.6mm/6mm/8mm/16mm F2.0 3MP 1080P M12x0.5 Mount Board Lens for security camera

    • 1/2" 3.6mm/6mm/8mm/16mm F2.0 3MP 1080P M12x0.5 Mount Board Lens for security camera
    • 1/2" 3.6mm/6mm/8mm/16mm F2.0 3MP 1080P M12x0.5 Mount Board Lens for security camera
    • 1/2" 3.6mm/6mm/8mm/16mm F2.0 3MP 1080P M12x0.5 Mount Board Lens for security camera
    • 1/2" 3.6mm/6mm/8mm/16mm F2.0 3MP 1080P M12x0.5 Mount Board Lens for security camera
  • 1/2" 3.6mm/6mm/8mm/16mm F2.0 3MP 1080P M12x0.5 Mount Board Lens for security camera

    Product Details:

    Place of Origin: China
    Brand Name: CCOM LENS
    Model Number: 1/2" F2.0 3MP MTV series

    Payment & Shipping Terms:

    Minimum Order Quantity: 100pcs
    Packaging Details: Standard
    Delivery Time: 2-7 work days
    Payment Terms: T/T, Western Union, Moneygram, Paypal
    Supply Ability: Samples available
    Contact Now
    Detailed Product Description
    Video Lens: M12 Mount Board Lens Resolution: 3MP
    Focal Length: 3.6mm/6mm/8mm/16mm Lens Constructure: 5G/5G+IR

    1/2" 3.6mm/6mm/8mm/16mm F2.0 1080P 3Megapixel S mount M12x0.5 Fixed Focal Lens for security cameras, MTV lens



    Model 1203620MP-3MP
    SENSOR 1/2" CCD/CMOS
    FOCAL LENGTH 3.6mm
    RESOLUTION 3MP
    F.O.V.(D) 120°
    APERTURE F2.0
    IRIS Fixed
    MOUNT M12XP0.5
    B.F.L. 7.24mm
    T.T.L. 23.86mm
    LENS CONSTRUCTURE 5G
    DIMENSION Φ16*16.6mm



    Model 120620MP-3MP
    SENSOR 1/2" CCD/CMOS
    FOCAL LENGTH 6mm
    RESOLUTION 3MP
    F.O.V.(H) 67.4°
    APERTURE F2.0
    IRIS Fixed
    MOUNT M12XP0.5

    M.O.D. 0.3m
    B.F.L. 7.81mm
    T.T.L. 24.51mm
    LENS CONSTRUCTURE 5G
    DIMENSION Φ14*16.7mm



    Model 120820MP-3MP
    IMAGE FORMAT 1/2"
    FOCAL LENGTH 8.0mm
    F.O.V. (H) 53°
    RESOLUTION 3 MP
    APERTURE F2.0
    MOUNT M12X0.5
    IRIS Fixed
    FOCUS Manual
    DISTORTION -14%
    B.F.L. 7.8mm
    M.O.D. 0.3m
    T.T.L. 25.8mm

    LENS CONSTRUCTURE 5G
    DIMENSION(mm) Φ14 x 18



    Model 121620MP-3MP
    IMAGE FORMAT 1/2"
    FOCAL LENGTH 16mm
    F.O.V.
    (H) 22.5°
    RESOLUTION 3 MP
    APERTURE F2.0
    MOUNT M12X0.5
    IRIS Fixed
    FOCUS Manual
    DISTORTION 1%
    B.F.L. 6.93mm
    M.O.D. 0.3m
    T.T.L. 20.08mm

    LENS CONSTRUCTURE 5G
    DIMENSION(mm) Φ14 x 15.15



    Tips:
    - ***MP: without IR-Cut filter
    - ***MPF: with IR-Cut filter
    - 650nm/850nm/940nm IR filter optional
    - CS mount available

    - For more lenses, please feel free to contact us at sales01@megapixellenses.com; cctv.lens@ccom-tech.com
