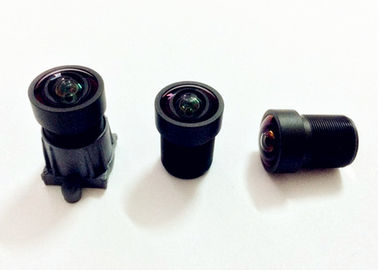

1/2.7" 2.4mm 5Megapixel F2.6 M12x0.5 mount low-distortion Board Lens for OV2710/AR0330/OV4689
 |
Product Details:
| Place of Origin: | China |
| Brand Name: | CCOM LENS |
| Model Number: | 127024MPF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100pcs |
|---|---|
| Packaging Details: | Standard |
| Delivery Time: | 2-7 work days |
| Payment Terms: | T/T, Western Union, Moneygram, Paypal |
| Supply Ability: | Samples available |
Detailed Product Description
| Board Lens: | M12 Mount Low-distortion Lens | Resolution: | 5MP |
|---|---|---|---|
| Distortion: | <-6.5% | Constructure: | 4G2P+IR |
| High Light: | megipixel lens,Non-distortion lens,M12x0.5 Board Lens |
||
1/2.7" 2.4mm 5MP F2.6 M12x0.5 mount 113degree wide angle low-distortion Board Lens for OV2710/AR0330/OV4689
MODEL 127024MPF
SENSOR SIZE 1/2.7" OV2710 & 1/3" AR0330 & 1/3" OV4689
MAX IMAGE CIRCLE Φ6.8mm
FOCAL LENGTH(EFL) 2.4mm
F.O.V. (D*H*V) OV2710: 113.5°*103.5°*68°; AR0330: 107.5°*94.6°*70°; OV4689: 109°*99°*64.5°
RESOLUTION 5MP
APERTURE F2.6
OPTICAL DISTORTION <-6.5%
MOUNT M12X0.5
B.F.L.(O) 4.54mm
B.F.L.(M) 3.38mm
T.T.L. 23mm
DIMENSION Φ14x19.62mm
LENS CONSTRUCTURE 4G2P+IR
RELATIVE ILLUMINATION AR0330: >.7%; OV2710: >65.8%, OV4689: >69.9%
CRA OV2710: <14.56°; AR0330: <13.5°; OV4689: <13.76°
IR COATING 640+/-8NM AT:50%
Tips:
- ***MP: without IR-Cut filter
- ***MPF: with IR-Cut filter
- 650nm/850nm/940nm IR filter optional
