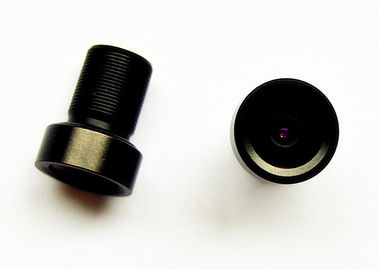

1/4" 2.3mm F2.6 Megapixel M7x0.35 mount 136degree wide angle lens for OV9712

1/4" 2.3mm F2.6 Megapixel M7x0.35 mount 136degree wide angle lens for OV9712

    • 1/4" 2.3mm F2.6 Megapixel M7x0.35 mount 136degree wide angle lens for OV9712
    • 1/4" 2.3mm F2.6 Megapixel M7x0.35 mount 136degree wide angle lens for OV9712
    • 1/4" 2.3mm F2.6 Megapixel M7x0.35 mount 136degree wide angle lens for OV9712
  • 1/4" 2.3mm F2.6 Megapixel M7x0.35 mount 136degree wide angle lens for OV9712

    Product Details:

    Place of Origin: China
    Brand Name: CCOM LENS
    Model Number: 14023MPF-M7(C)

    Payment & Shipping Terms:

    Minimum Order Quantity: 100pcs
    Packaging Details: Standard
    Delivery Time: 2-7 work days
    Payment Terms: T/T, Western Union, Moneygram, Paypal
    Supply Ability: Samples available
    Contact Now
    Detailed Product Description
    Video Lens: M7 Mount Wide Angle Lens Resolution: 1.3MP
    FOV(DxHxV): 136°*105°*60.6° Lens Constructure: 4G/4G+IR
    High Light:

    Rear-view mirror lens

    ,

    wide angle lens

    ,

    M7x0.35 Board Lens

    1/4" 2.3mm F2.6 1.3MP Megapixel M7x0.35 Mount 136degree Wide Angle Lens for Automobile data recorder/vehicle rear-view mirror, 2.3mm 1.3MP M7 lens for OV9712 sensor



    Model 14023MPF-M7(C)
    IMAGE FORMAT 1/4"
    MAX IMAGE CIRCLE Ø 5.1mm
    FOCAL LENGTH 2.3mm
    F.O.V (D*H*V) 136°*105°*60.6°
    DISTORTION H -10.7%, V -36.5%
    APERTURE F2.6
    RESOLUTION 1.3MP
    MOUNT M7XP0.35
    IRIS Fixed
    B.F.L. 3.40mm
    F.B.L. 1.50mm
    T.T.L. 14.0 mm
    DIMENSION Φ10×12.5mm
    LENS COMPOMENT 4G+IR
    CUT FREQUENCY AT 50% 640±8nm



    Tips:

    - ***MP: without IR-Cut filter
    - ***MPF: with IR-Cut filter
    - 650nm/850nm/940nm IR filter optional

    - M7/M12 mount option

    - For more lenses, please feel free to contact us at sales01@megapixellenses.com; cctv.lens@ccom-tech.com
