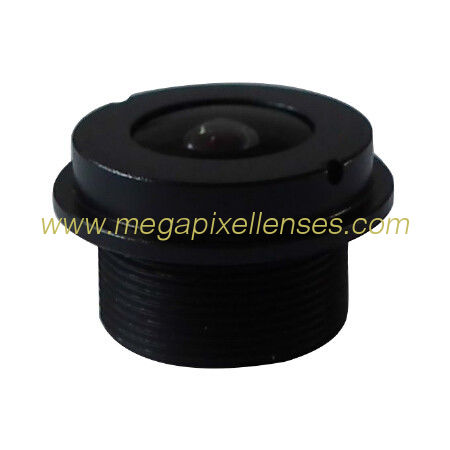

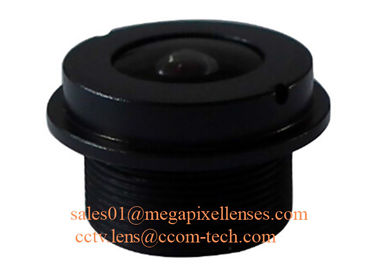

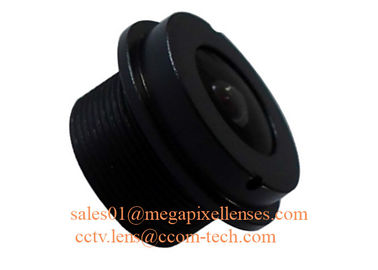

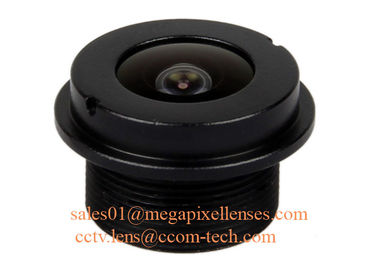

1/3" 1.3mm Megapixel M12x0.5 mount 180degree Waterproof Fisheye Lens, IP68 automotive camera lens

1/3" 1.3mm Megapixel M12x0.5 mount 180degree Waterproof Fisheye Lens, IP68 automotive camera lens

    • 1/3" 1.3mm Megapixel M12x0.5 mount 180degree Waterproof Fisheye Lens, IP68 automotive camera lens
    • 1/3" 1.3mm Megapixel M12x0.5 mount 180degree Waterproof Fisheye Lens, IP68 automotive camera lens
    • 1/3" 1.3mm Megapixel M12x0.5 mount 180degree Waterproof Fisheye Lens, IP68 automotive camera lens
    • 1/3" 1.3mm Megapixel M12x0.5 mount 180degree Waterproof Fisheye Lens, IP68 automotive camera lens
  • 1/3" 1.3mm Megapixel M12x0.5 mount 180degree Waterproof Fisheye Lens, IP68 automotive camera lens

    Product Details:

    Place of Origin: China
    Brand Name: CCOM LENS
    Model Number: 13013MP 13013MPF

    Payment & Shipping Terms:

    Minimum Order Quantity: 100pcs
    Packaging Details: Standard
    Delivery Time: 2-7 work days
    Payment Terms: T/T, Western Union, Moneygram, Paypal
    Supply Ability: Samples available
    Contact Now
    Detailed Product Description
    Board Lens: M12 Mount Fisheye Lens/Automotic Camera Lens Resolution: 1.3MP
    FOV: 180degree Materials: Metal + Glass

    Automotic Camera Lens

    - Very wide field angle, can be used as front view, side view, rear view lens.

    - Suit for 1/3", 1/3.7", 1/4" sensors.

    - All glass lenses, Operating temperature is from -40℃ to 105℃, suit for automotive cars.

    - Wear-resistant and waterproof and multi-layer coating, provide great protection and transmittance.

    - Very short total length, suit for compact assembly space.



    1/3" 1.3mm F2.5 Megapixel M12x0.5 Mount 180degree IP68 Waterproof Automotive Camera Lens, 1.3mm Mini Fisheye Lens for 180º 360º panoramic cameras


    MODEL 13013MPF
    IMAGE FORMAT 1/3"

    MAX IMAGE CIRCLE Φ3.6mm
    FOCAL LENGTH(mm) 1.3
    FOV 1/3" (6x4.8x3.6): 180°(D)*180°(H)*180°(V), 1/3.7" (5x4.032x2.952) 180°(D)*180°(H)*140.3°(V), 1/4" (4.5x3.6x2.7) 180°(D)*180°(H)*123.5°(V)

    RESOLUTION MP
    APERTURE 2.5

    TV DISTORTION <-98%
    MOUNT(mm) M12x0.5
    IRIS Fixed
    M.O.D.(m) 0.15
    B.F.L.(mm) 2.89

    M.B.F.(mm) 2.14

    T.T.L.(mm) 12.35

    DIMENSION(mm) Φ16x10.2

    OPERATING TEMPERATURE -40℃ ~ +105℃

    IR-CUT FILTER: 650nm±20nm at 50% normalized transmittance

    AR COATING Multi-layer BBAR coating(Typical reflectivity <1% on front surface, <0.5% on others)
    INGRESS PROTECTION IP68



    Tips:
    - ***MP: without IR-Cut filter
    - ***MPF: with IR-Cut filter
    - 650nm/850nm/940nm IR filter optional

    - For more fisheye lenses, please feel free to contact us at sales01@megapixellenses.com; cctv.lens@ccom-tech.com
