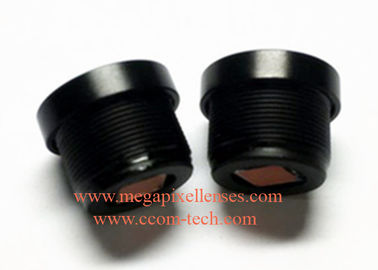

1/2.3" 1.8mm F2.0 12MP M12x0.5 mount 200degree wide-angle fisheye lens for IMX078/IMX322/OV4689/OV9712

1/2.3" 1.8mm F2.0 12MP M12x0.5 mount 200degree wide-angle fisheye lens for IMX078/IMX322/OV4689/OV9712

    • 1/2.3" 1.8mm F2.0 12MP M12x0.5 mount 200degree wide-angle fisheye lens for IMX078/IMX322/OV4689/OV9712
    • 1/2.3" 1.8mm F2.0 12MP M12x0.5 mount 200degree wide-angle fisheye lens for IMX078/IMX322/OV4689/OV9712
    • 1/2.3" 1.8mm F2.0 12MP M12x0.5 mount 200degree wide-angle fisheye lens for IMX078/IMX322/OV4689/OV9712
    • 1/2.3" 1.8mm F2.0 12MP M12x0.5 mount 200degree wide-angle fisheye lens for IMX078/IMX322/OV4689/OV9712
  • 1/2.3" 1.8mm F2.0 12MP M12x0.5 mount 200degree wide-angle fisheye lens for IMX078/IMX322/OV4689/OV9712

    Product Details:

    Place of Origin: China
    Brand Name: CCOM LENS
    Model Number: 123018MP-M12 123018MPF-M12

    Payment & Shipping Terms:

    Minimum Order Quantity: 100pcs
    Packaging Details: Standard
    Delivery Time: 2-7 work days
    Payment Terms: T/T, Western Union, Moneygram, Paypal
    Supply Ability: Samples available
    Contact Now
    Detailed Product Description
    Board Lens: M12 Mount Fisheye Lens Resolution: 12MP
    FOV: 200degree Materials: Metal + Glass

    1/2.3"~1/4" 1.8mm F2.0 12Megapixel M12x0.5/M7x0.35 mount 200degree Super Fisheye Lens for IMX078/IMX322/OV4689/OV9712/AS0260, special wide angle lens for VR/Security/Doorbell/Vehicle cameras



    MODEL 123018MPF-M12
    IMAGE FORMAT 1/2.3", 1/3", 1/4"
    MAX IMAGE CIRCLE Φ4.7mm
    FOCAL LENGTH(mm) 1.8
    FOV(D*H*V): 1/2.3" 200°*200°*200°; 1/3" 200°*200°*103°; 1/4" 177.2°*136°*79°

    RESOLUTION 12MP
    APERTURE F2.0
    MOUNT(mm) M12x0.5
    DISTORTION >100%
    R.I. >50%
    C.R.A. <15.32°
    IRIS Fixed
    B.F.L.(O) 3.46mm
    B.F.L.(M) 2.33mm
    T.T.L. 14.0mm
    LENS DIMENSION Φ14*11.67mm
    STRUCTURE 6G+IR CUT



    Model: 123018MPF-M7 (mainly used for 1/4" ~ 1/6" sensors)
    IMAGE FORMAT: 1/2.3" ~ 1/6"

    MAX IMAGE CIRCLE Φ4.7mm
    FOCAL LENGTH(mm): 1.8
    F.O.V.(D*H*V): 200°*200°*200°; 1/3" 200°*200°*103°; 1/4" 177.2°*136°*79°; 1/6" 104°*89.5°*48.8°

    RESOLUTION: MP
    APERTURE: F2.0

    B.F.L.(O) 3.46mm
    B.F.L.(M) 2.33mm
    TTL: 14.0mm
    R.I.: >54.3%
    C.R.A.: <14.96°
    M.O.D.(m): 0.2
    MOUNT(mm): M7*0.35
    DIMENSION: Φ10.0*11.67mm
    LENS COMPOMEMT: 6G+IR-Cut



    Tips:
    - ***MP: without IR-Cut filter
    - ***MPF: with IR-Cut filter
    - 650nm/850nm/940nm IR filter optional

    - M12 or M7 mount option

    - For more fisheye lenses, please feel free to contact us at sales01@megapixellenses.com; cctv.lens@ccom-tech.com
