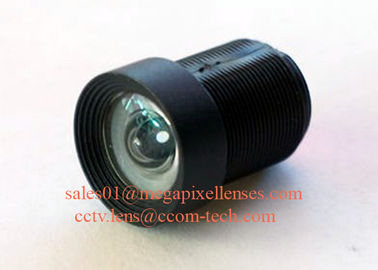

1/2.5" 2.97mm F4.0 5Megapixel M12x0.5 Mount Non-Distortion Board Lens for MI5100/MT9P001
 |
Product Details:
| Place of Origin: | China |
| Brand Name: | CCOM LENS |
| Model Number: | 1250297MP 1250297MPF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100pcs |
|---|---|
| Packaging Details: | Standard |
| Delivery Time: | 2-7 work days |
| Payment Terms: | T/T, Western Union, Moneygram, Paypal |
| Supply Ability: | Samples available |
Detailed Product Description
| Board Lens: | M12 Mount Low-distortion Lens | Resolution: | 5MP |
|---|---|---|---|
| Distortion: | <1% | Lens Constructure: | 2G2P/2G2P+IR |
| Highlight: | scanner lens,Megapixel non-distortion lens,M12 Board CCTV Lens |
||
1/2.5" 2.97mm F4.0 5Megapixel M12x0.5 Mount Non-Distortion Board Lens for MI5100/MT9P001 sensors, 2.97mm lens for scanners/HD cameras
Model: 1250297MPF
Sensor: 1/2.5" (for MI5100 and MT9P001 sensors)
Image Height: Φ7.5mm
Focal length: 2.97mm
F/No.: 4.0
F.O.V: 102° (D)
Optical Distortion: <1%
Mount: M12*P0.5
Resolution 5MP
F.B.L.: 2.4mm
B.F.L.: 3.5mm
TTL: 20.9mm
Constructure: 6G+IR
Lens Dimension: Φ14x18.5mm
Tips:
- ***MP: without IR-Cut filter
- ***MPF: with IR-Cut filter
- 650nm/850nm/940nm IR filter optional
- For more lenses, please feel free to contact us at sales01@megapixellenses.com; cctv.lens@ccom-tech.com
