780nm narrow band pass NIR filter, Red 780nm NIR IR-Cut filter 8*8*1.1mm

780nm narrow band pass NIR filter, Red 780nm NIR IR-Cut filter 8*8*1.1mm

    • 780nm narrow band pass NIR filter, Red 780nm NIR IR-Cut filter 8*8*1.1mm
    • 780nm narrow band pass NIR filter, Red 780nm NIR IR-Cut filter 8*8*1.1mm
  • 780nm narrow band pass NIR filter, Red 780nm NIR IR-Cut filter 8*8*1.1mm

    Product Details:

    Place of Origin: China
    Brand Name: CCOM LENS
    Model Number: IR780NB

    Payment & Shipping Terms:

    Minimum Order Quantity: 100pcs
    Packaging Details: Standard
    Delivery Time: 2-7 work days
    Payment Terms: T/T, Western Union, Moneygram, Paypal
    Supply Ability: Samples available
    Contact Now
    Detailed Product Description
    IR Filter: 780nm Narrow Band IR Pass Filter, Center Wavelength: 780±5 Nm
    Shape: Square Material: Glass

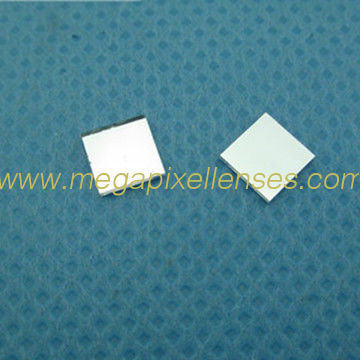

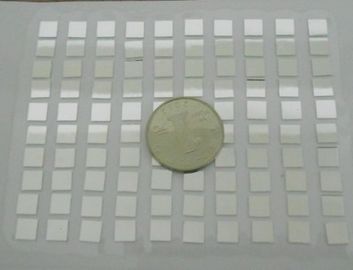

    Red 780nm band pass NIR IR Cut-off filter, square shape 780nm narrow bandpass filter, 8.0*8.0*1.1mm square IR filter


    Model: IR780NB
    Square: 8.0*8.0 mm

    Thickness: 1.1mm

    Center wavelength: 780nm± 10nm

    Half bandwidth: 20nm

    Peak transmission rate: >86%

    Cut-off depth: <1%

    Material: mirror glass



    Tips:

    - Round shape optional

    - Custom size available

    - For more IR filters, please feel free to contact us at sales01@megapixellenses.com; cctv.lens@ccom-tech.com
