CCOM Electronics Technology Co., Ltd.
CCTV Optical Master to Provide Best Video Solutions
Place of Origin: | China |
Brand Name: | CCOM LENS |
Model Number: | 12702812DM-M12-3MP 12702812DM-M12-3MPF |
Minimum Order Quantity: | 100pcs |
---|---|
Packaging Details: | Standard |
Delivery Time: | 2-7 work days |
Payment Terms: | T/T, Western Union, Moneygram, Paypal |
Supply Ability: | Samples available |
Board Lens: | M12 Mount Vari-focal Lens | Focal Length: | 1/2.7" 2.8-12mm |
---|---|---|---|
Resolution: | 3MP | Materials: | Glass + Metal |
Vari-Focal Lens
● Multi-mega pixels lens
● Compact design for Dome & Bullet cameras
● IR-collection for Day & Night surveillance
● IRIS option: Fixed, Auto (DC) drive

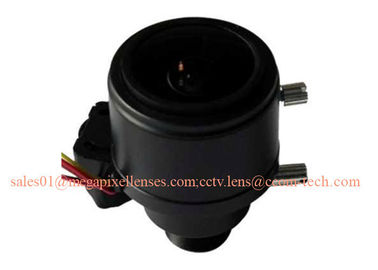

1/2.7" 2.8-12mm F1.8 1080P 3Megapixel M12x0.5 S mount DC Auto IRIS Manual Zoom/Focus Vari-Focal Lens, 2.8-12mm fixed IRIS IR/IR-CUT board lens
Model 12702812DM-M12-3MP
IMAGE FORMAT 1/2.7"
FOCAL LENGTH 2.8~12mm
F.O.V (D*H*V) 1/2.7”: 136°*109°*81.6° ~ 39°*31.2°*23.4°, 1/3”: 122°*97.6°*73.2° ~ 36°*28.2°*21.6°, 1/4”: 87°*69.6°*52.2° ~ 24°*19°*14°
RESOLUTION 3MP
APERTURE F1.8
MOUNT M12x0.5
OPTICAL DISTORTION -61~ -4%(1/2.7")
IRIS DC Auto
ZOOM Manual
FOCUS Manual
M.O.D. 0.3m
B.F.L. 6.9~14.4mm
F.B.L. 13.5mm
M.B.F. 6.0mm
IR COLLECTION Yes
DIMENSION Φ28×41.7mm
OPERATING TEMPERATURE -20℃~+60℃
Model 12702812DM-M12-3MPF
IMAGE FORMAT 1/2.7"
FOCAL LENGTH 2.8~12mm
F.O.V (D*H*V) 1/2.7”: 136°*109°*81.6° ~ 39°*31.2°*23.4°, 1/3”: 122°*97.6°*73.2° ~ 36°*28.2°*21.6°, 1/4”: 87°*69.6°*52.2° ~ 24°*19°*14°
RESOLUTION 3MP
APERTURE F1.8
MOUNT M12x0.5
OPTICAL DISTORTION -61~ -4%(1/2.7")
IRIS DC Auto
ZOOM Manual
FOCUS Manual
M.O.D. 0.3m
B.F.L. 6.9~14.4mm
F.B.L. 13.5mm
M.B.F. 6.0mm
IR Cut Yes (650nm IR filter)
DIMENSION Φ28×41.7mm
OPERATING TEMPERATURE -20℃~+60℃
Tips:
- IR/IR-Cut option
- 650nm/850nm/940nm IR filter optional
- Fixed/DC Auto/P-IRIS IRIS option
- M12/D14/CS mount option
- For more lenses, please feel free to contact us at sales01@megapixellenses.com; cctv.lens@ccom-tech.com
