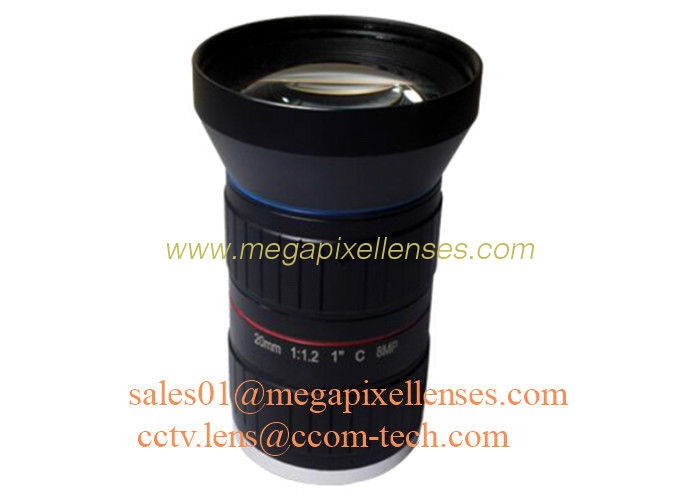

1" 20mm F1.2 8Megapixel C Mount Manual IRIS Low Distortion ITS Lens, 20mm Traffic Monitoring Lens
 |
Product Details:
| Place of Origin: | China |
| Brand Name: | CCOM LENS |
| Model Number: | 112012MM-C-8MP |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100pcs |
|---|---|
| Packaging Details: | Standard |
| Delivery Time: | 2-7 work days |
| Payment Terms: | T/T, Western Union, Moneygram, Paypal |
| Supply Ability: | Samples available |
Detailed Product Description
| ITS Lens: | Fixed Focal C Mount Lens | Resolution: | 8MP |
|---|---|---|---|
| IRIS: | Manual | IR Collection: | No |
Main advantages of ITS Lens:
- Show license plate numbers and driver's face clearly;
- Ultra-high resolution of 5-12 megapixel;
- Low distortion image high quality with good corner brightness;
- Auto/manual IRIS;
- Large image format for ITS and standard surveillance applications;
- Popula for ANPR(LPR) applications.
1" 20mm F1.2 8Megapixel C Mount Low Distortion ITS Lens, Manual IRIS Manual Focus Traffic Monitoring Lens for 1" 3/4" 2/3" 1/2" 1/3"... sensors
MODEL 112012MM-C-8MP
IMAGE FORMAT 1"
FOCAL LENGTH 20mm
F.O.V (D*H*V) 1": 44.5°*35.6°*26.7°, 2/3”: 30.8°*24.6*18.5°, 1/2”: 22.4°*17.9°*13.4°
RESOLUTION 8MP
OPTICAL DISTORTION <-2.8%
APERTURE F1.2
MOUNT C
IRIS Manual
FOCUS Manual
M.O.D. 0.8m
Flange .B.F.L. 17.526mm
B.F.L. 13.52mm
M.B.F. 9.65~11.65mm
IR COLLECTION NO
DIMENSION Φ57×94.85~96.85mm
OPERATING TEMPERATURE -20℃～+60℃
Tips:
- For more lenses, please feel free to contact us at sales01@megapixellenses.com; cctv.lens@ccom-tech.com
