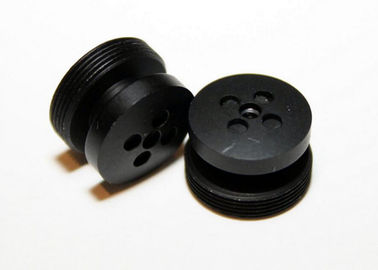

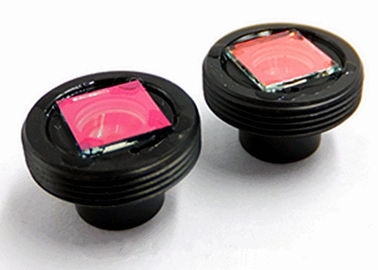

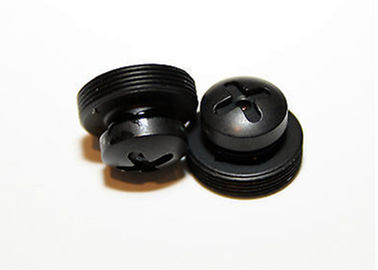

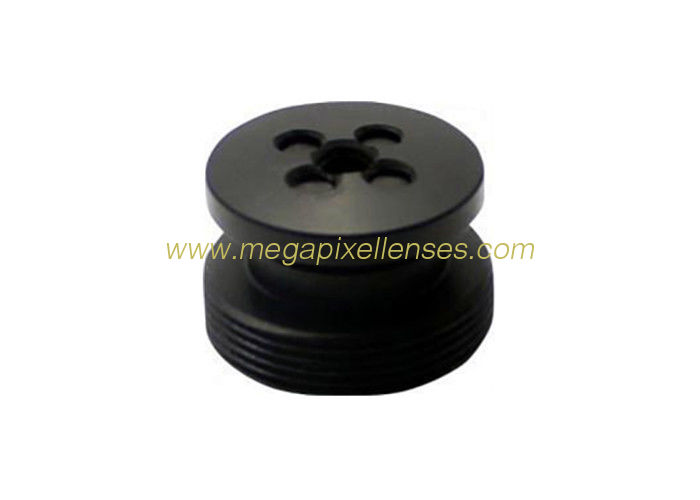

1/3" 3.7mm/4.3mm/6mm F2.4 1.3Megapixel M12x0.5 Mount Button/Screw Pinhole Lens for covert cameras

1/3" 3.7mm/4.3mm/6mm F2.4 1.3Megapixel M12x0.5 Mount Button/Screw Pinhole Lens for covert cameras

    • 1/3" 3.7mm/4.3mm/6mm F2.4 1.3Megapixel M12x0.5 Mount Button/Screw Pinhole Lens for covert cameras
    • 1/3" 3.7mm/4.3mm/6mm F2.4 1.3Megapixel M12x0.5 Mount Button/Screw Pinhole Lens for covert cameras
    • 1/3" 3.7mm/4.3mm/6mm F2.4 1.3Megapixel M12x0.5 Mount Button/Screw Pinhole Lens for covert cameras
    • 1/3" 3.7mm/4.3mm/6mm F2.4 1.3Megapixel M12x0.5 Mount Button/Screw Pinhole Lens for covert cameras
  • 1/3" 3.7mm/4.3mm/6mm F2.4 1.3Megapixel M12x0.5 Mount Button/Screw Pinhole Lens for covert cameras

    Product Details:

    Place of Origin: China
    Brand Name: CCOM LENS
    Model Number: 13037PMP-B 13043PMP-B 13060PMP-B

    Payment & Shipping Terms:

    Minimum Order Quantity: 100pcs
    Packaging Details: Standard
    Delivery Time: 2-7 work days
    Payment Terms: T/T, Western Union, Moneygram, Paypal
    Supply Ability: Samples available
    Contact Now
    Detailed Product Description
    CCTV Lens: M12 Mount Pinhole Lens Focal Length: 3.7/4.3/6mm Pinhole Lens
    Resolution: Megapixel Lens Constructure: 4G/4G+IR

    1/3" 3.7mm/4.3mm/6mm F2.4 1.3Megapixel M12x0.5 Mount Button Pinhole Lens for covert cameras, button lens/screw lens 3.7mm/4.3mm/6mm M12 mount pinhole lenses



    Model 13037PMP-B
    SENSOR FORMAT 1/3” CCD/CMOS
    FOCAL LENGTH 3.7mm ±5%
    RESOLUTION 1.3MP
    F.O.V. 90°(D)
    APERTURE F2.4 ±5%
    IRIS Fixed
    M.O.D. 0.3m
    MOUNT M12XP0.5
    B.F.L. 3.6mm ±5%
    F.B.L. 2.9mm ±5%

    T.T.L. 10.5mm ±5%
    LENS CONSTRUCTURE 4G

    DIMENSION Φ12x7.6mm



    Model 13043PMP-B
    SENSOR FORMAT 1/3” CCD/CMOS
    FOCAL LENGTH 4.3mm ±5%
    RESOLUTION 1.3MP
    F.O.V. 80°(D)
    APERTURE F2.8 ±5%
    IRIS Fixed
    M.O.D. 0.3m
    MOUNT M12XP0.5
    B.F.L. 4.3mm ±5%
    F.B.L. 3.2mm ±5%

    T.T.L. 10.8mm ±5%
    LENS CONSTRUCTURE 4G

    DIMENSION Φ12x7.6mm



    Model 13060PMP-B
    SENSOR FORMAT 1/3” CCD/CMOS
    FOCAL LENGTH 6.0mm ±5%
    RESOLUTION 1.3MP
    F.O.V. 60°(D)
    APERTURE F2.4 ±5%
    IRIS Fixed
    M.O.D. 0.3m
    MOUNT M12XP0.5

    T.T.L. 12.5mm ±5%
    LENS CONSTRUCTURE 4G

    DIMENSION Φ12x7.6mm



    Tips:
    - IR-Cut filter available
    - 650nm/850nm/940nm IR filter optional

    - 3.7mm/4.3mm/6mm focal length option

    - Button/screw shape option

    - For more lenses, please feel free to contact us at sales01@megapixellenses.com; cctv.lens@ccom-tech.com
