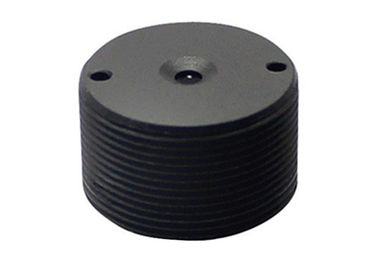

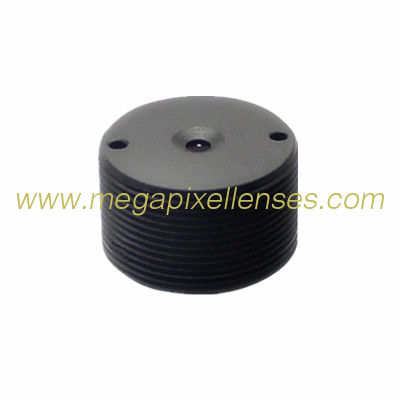

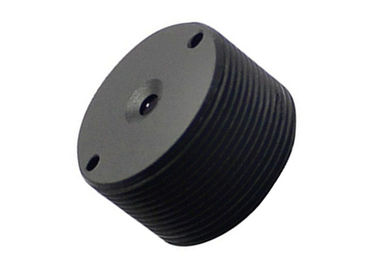

1/3" 3.7mm/3.8mm F2.5 Megapixel M12x0.5 Mount Pinhole Lens for CMOS/CCD sensors

1/3" 3.7mm/3.8mm F2.5 Megapixel M12x0.5 Mount Pinhole Lens for CMOS/CCD sensors

    • 1/3" 3.7mm/3.8mm F2.5 Megapixel M12x0.5 Mount Pinhole Lens for CMOS/CCD sensors
    • 1/3" 3.7mm/3.8mm F2.5 Megapixel M12x0.5 Mount Pinhole Lens for CMOS/CCD sensors
    • 1/3" 3.7mm/3.8mm F2.5 Megapixel M12x0.5 Mount Pinhole Lens for CMOS/CCD sensors
  • 1/3" 3.7mm/3.8mm F2.5 Megapixel M12x0.5 Mount Pinhole Lens for CMOS/CCD sensors

    Product Details:

    Place of Origin: China
    Brand Name: CCOM LENS
    Model Number: 13037PMP-D / 13038PMP-M12

    Payment & Shipping Terms:

    Minimum Order Quantity: 100pcs
    Packaging Details: Standard
    Delivery Time: 2-7 work days
    Payment Terms: T/T, Western Union, Moneygram, Paypal
    Supply Ability: Samples available
    Contact Now
    Detailed Product Description
    CCTV Lens: M12 Mount Pinhole Lens Focal Length: 3.7mm/3.8mm Pinhole Lens
    Resolution: Megapixel Lens Constructure: 4G/4G+IR

    1/3" 3.7mm/3.8mm F2.5 1.3Megapixel M12x0.5 Mount 97Degree Wide Angle Flat Cone Pinhole Lens for covert cameras, 3.7mm/3.8mm M12 plane pinhole lens



    Model 13037PMP-D
    SENSOR FORMAT 1/3” CCD/CMOS
    FOCAL LENGTH 3.7mm ±5%
    F.O.V. 92°(D)
    APERTURE F2.5 ±5%

    RESOLUTION 1.3MP
    IRIS Fixed
    M.O.D. 0.3m
    MOUNT M12XP0.5
    B.F.L. 3.6mm ±5% (in air)
    F.B.L. 3.2mm ±5%

    T.T.L. 10.2mm ±5%
    LENS CONSTRUCTURE 4G

    DIMENSION Φ12x70mm



    Model 13038PMP-M12
    SENSOR FORMAT 1/3” CCD/CMOS
    FOCAL LENGTH 3.8mm ±5%
    F.O.V. 97°(D)
    APERTURE F2.5 ±5%

    RESOLUTION 1.3MP
    IRIS Fixed
    M.O.D. 0.3m
    MOUNT M12XP0.5
    B.F.L. 4.10mm ±5% (in air)
    F.B.L. 3.06mm ±5%

    T.T.L. 10.5mm ±5%
    LENS CONSTRUCTURE 4G

    DIMENSION Φ12x7.4mm



    Tips:
    - IR-Cut filter available

    - M12/M8/M7 mount option
    - 650nm/850nm/940nm IR filter optional

    - For more lenses, please feel free to contact us at sales01@megapixellenses.com; cctv.lens@ccom-tech.com
