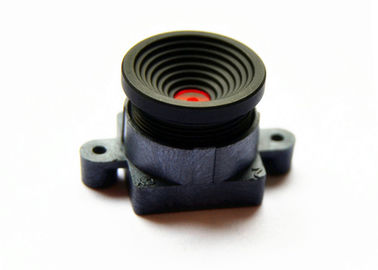

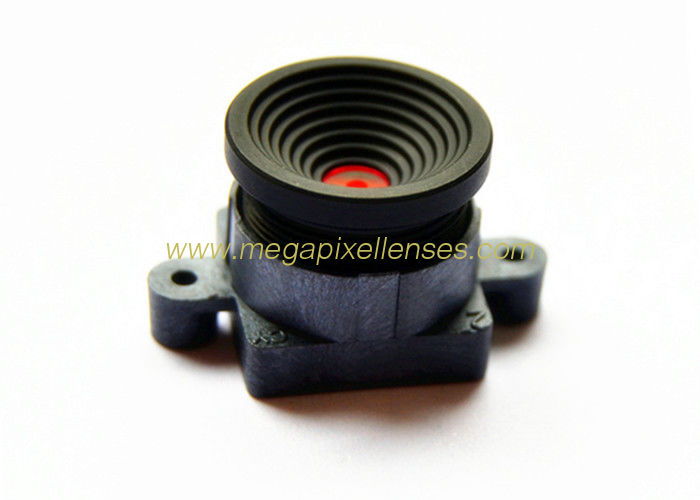

1/3" 4.6mm F3.0 5Megapixel M12x0.5 Mount Non-Distortion Board Lens, scanner lens M12 Rectilinear Lens

1/3" 4.6mm F3.0 5Megapixel M12x0.5 Mount Non-Distortion Board Lens, scanner lens M12 Rectilinear Lens

    • 1/3" 4.6mm F3.0 5Megapixel M12x0.5 Mount Non-Distortion Board Lens, scanner lens M12 Rectilinear Lens
    • 1/3" 4.6mm F3.0 5Megapixel M12x0.5 Mount Non-Distortion Board Lens, scanner lens M12 Rectilinear Lens
  • 1/3" 4.6mm F3.0 5Megapixel M12x0.5 Mount Non-Distortion Board Lens, scanner lens M12 Rectilinear Lens

    Product Details:

    Place of Origin: China
    Brand Name: CCOM LENS
    Model Number: 13046MP-M12 13046MPF-M12

    Payment & Shipping Terms:

    Minimum Order Quantity: 100pcs
    Packaging Details: Standard
    Delivery Time: 2-7 work days
    Payment Terms: T/T, Western Union, Moneygram, Paypal
    Supply Ability: Samples available
    Contact Now
    Detailed Product Description
    Video Lens: M12 Mount Non-distortion Optical Lens Resolution: 5MP
    FOV: Φ6.0mm: 76°, Φ4.5mm: 60.5° Lens Constructure: 4P/4P+IR

    1/3" 4.6mm F3.0 5Megapixel M12x0.5 mount non-distortion lens M12 Rectilinear Lens for scanners/HD cameras, M8/M12 mount option



    MODEL 13046MPF-M12
    SENSOR FORMAT 1/3"
    MAX IMAGE CIRCLE Φ6.1mm
    FOCAL LENGTH(EFL) 4.6mm
    F.O.V. Φ6.0mm: 76°,
    Φ4.5mm: 60.5°
    RESOLUTION 5MP
    APERTURE F3.0
    OPTICAL DISTORTION <-1%
    MOUNT M12X0.5
    T.T.L. 8.78mm
    LENS CONSTRUCTURE 4P+IR

    IR COATING 645+/-10NM AT: 50%
    RELATIVE ILLUMINATION >65% (Φ4.5mm)
    CHIEF RAT ANGLE <25°



    Tips:
    - ***MP: without IR-Cut filter
    - ***MPF: with IR-Cut filter
    - 650nm/850nm/940nm IR filter optional

    - M8/M12 mount option

    - For more lenses, please feel free to contact us at sales01@megapixellenses.com; cctv.lens@ccom-tech.com
