1/2.3" 1.1mm 10Megapixel S mount M12 253degree Super Fisheye Lens for astrophotography, Drone UAV 360VR lens
 |
Product Details:
| Place of Origin: | China |
| Brand Name: | CCOM LENS |
| Model Number: | 123011MP 123011MPF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100pcs |
|---|---|
| Packaging Details: | Standard |
| Delivery Time: | 2-7 work days |
| Payment Terms: | T/T, Western Union, Moneygram, Paypal |
| Supply Ability: | Samples available |
Detailed Product Description
| Board Lens: | M12 Mount Fisheye Lens | Resolution: | 10MP |
|---|---|---|---|
| FOV: | 253degree | Materials: | Metal + Glass |

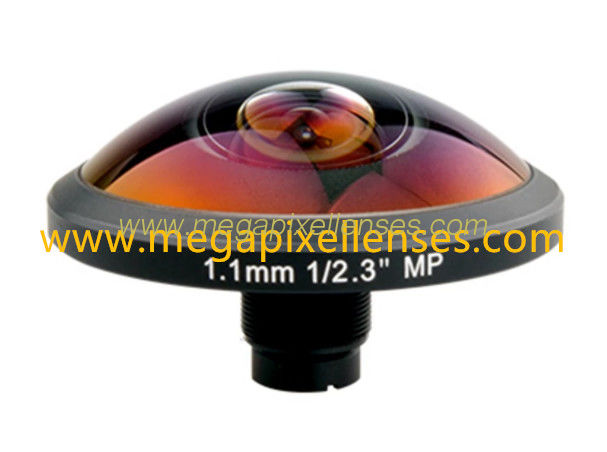

1/2.3" 1.1mm F2.4 10Megapixel M12*0.5 mount 253degree 4K Super Fisheye Lens for astrophotography, Drone UAV 360VR lens
MODEL 123011MP
IMAGE FORMAT 1/2.3"
IMAGE CIRCLE Φ4.48mm
FOCAL LENGTH(mm) 1.1
FOV(D*H*V): 253°*253°*253°
RESOLUTION 10MP
APERTURE 2.4
MOUNT(mm) M12x0.5
F-THETA DISTORTION <-9.8%
R.I. >85%
C.R.A. <8.5°
IRIS Fixed
M.O.D.(m) 0.1
B.F.L. 2.68mm (in air)
T.T.L 30.1mm (in air)
LENS DIMENSION Φ46*28mm
STRUCTURE 10-8-1ASG
Tips:
- ***MP: without IR-Cut filter
- ***MPF: with IR-Cut filter
- 650nm/850nm/940nm IR filter optional
- For more fisheye lenses, please feel free to contact us at sales01@megapixellenses.com; cctv.lens@ccom-tech.com
