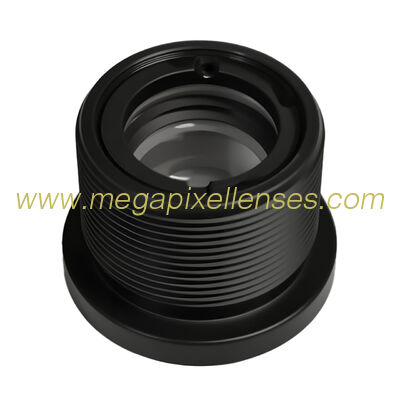

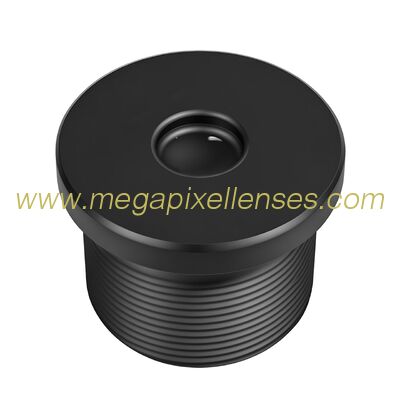

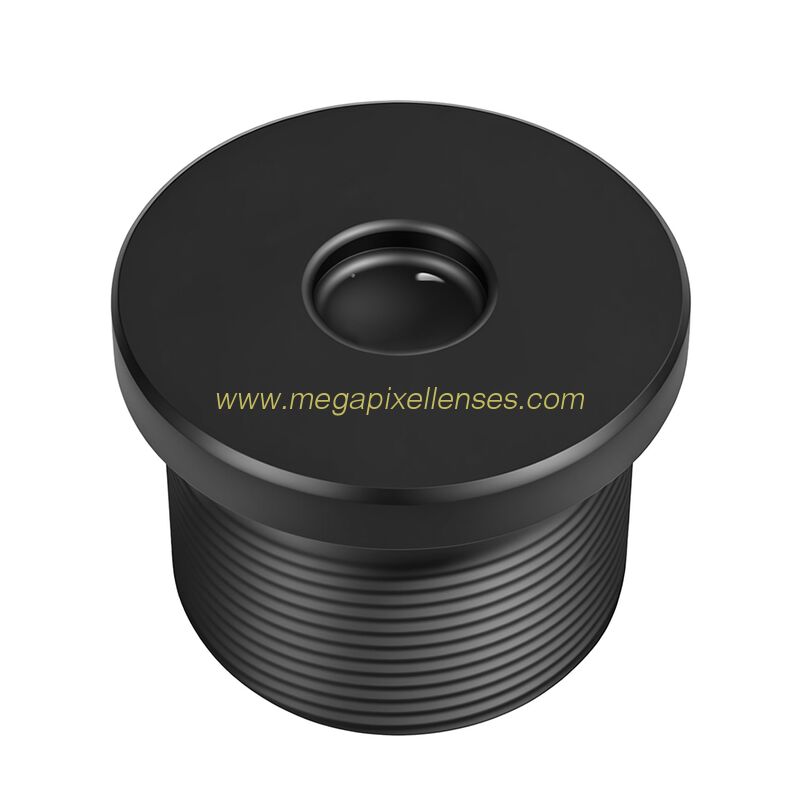

1/2" 12mm F2.8 5Megapixel M12x0.5 mount low-distortion lens S mount lens
 |
Product Details:
| Place of Origin: | China |
| Brand Name: | CCOM LENS |
| Model Number: | 121228MP 121228MPF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100pcs |
|---|---|
| Packaging Details: | Standard |
| Delivery Time: | 3-10 work days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | Samples available |
Detailed Product Description
| Video Lens: | M12 Mount Board Lens | Resolution: | 5MP |
|---|---|---|---|
| F.O.V.(D*H*V): | - | Lens Constructure: | 5G/5G+IR |
1/2" 12mm F2.8 5Megapixel Low Distortion M12x0.5 mount board lens, 5MP S mount cctv lens/scanner lens
MODEL: 121228MP
IMAGE FORMAT 1/2"
MAX IMAGE CIRCLE Φ8.8mm
FOCAL LENGTH(mm) 12
FOV: 54.36°(D)
RESOLUTION 5MP
APERTURE 2.8
OPTICAL DISTORTION -1.75%
TV DISTORTION -
Focusing Range >=1m
MOUNT(mm) M12x0.5
IRIS Fixed
B.F.L.: 8.567mm
T.T.L. 17.79mm
R.I. >82.5%
LENS DIMENSION Φ14*10.2mm
Structure 5G+IR
Tips:
- ***MP: without IR-Cut filter
- ***MPF: with IR-Cut filter
- 650nm/850nm/940nm IR filter optional
- For more lenses, please feel free to contact us at sales01@megapixellenses.com; cctv.lens@foxmail.com
