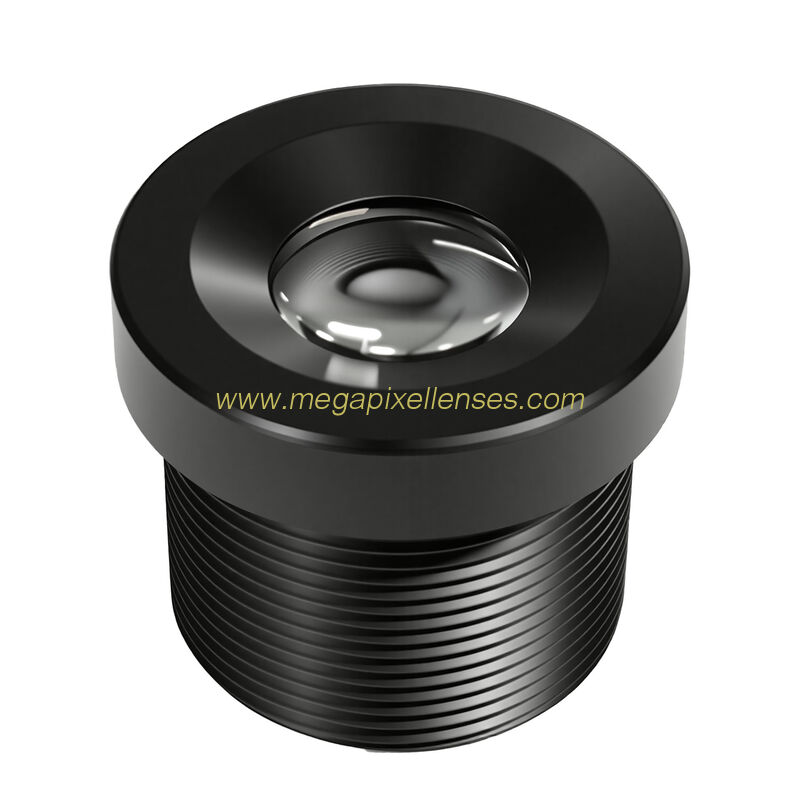

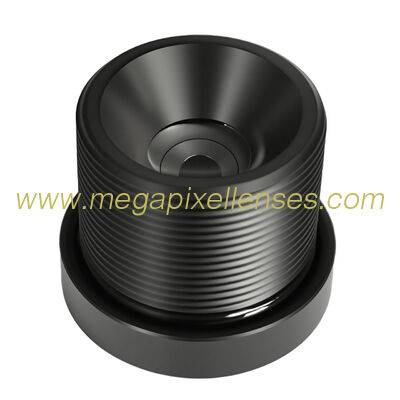

1/3" 12mm Megapixel F2.2 S Mount M12x0.5 Non-Distortion Board Lens, 12mm M12 board Lens
 |
Product Details:
| Place of Origin: | China |
| Brand Name: | CCOM LENS |
| Model Number: | 1312MP 1312MPF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100pcs |
|---|---|
| Packaging Details: | Standard |
| Delivery Time: | 3-15 work days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | Samples available |
Detailed Product Description
| Board Lens: | M12 Mount Low-distortion Lens | Resolution: | MP |
|---|---|---|---|
| Distortion: | <0.96% | Focus Extent: | >=40cm |
1/3" 12mm Megapixel F2.2 M12*0.5 Mount S Mount High Quality Non-Distortion IR/IRCUT Board Lens Rectilinear Lens for 1/3" 1/4" etc., 12mm long focal lens
Model 1312MP
Image Format 1/3″
Focal Length 12mm
Aperture F2.2
Resolution MP
FOV (DxHxV) 28°x20.1°x15.2°
Optical Distortion 0.96%
Mount Type M12*0.5
IRIS Fixed
Minimum Object Distance 0.4m
Back Focal Length 9.2mm
T.T.L. 11.35mm
External Dimensions(mm) Φ14(D)*18.07(L)
Tips:
- ***MP: without IR-Cut filter
- ***MPF: with IR-Cut filter
- 650nm/850nm/940nm IR filter optional
- For more lenses, please feel free to contact us at sales01@megapixellenses.com
