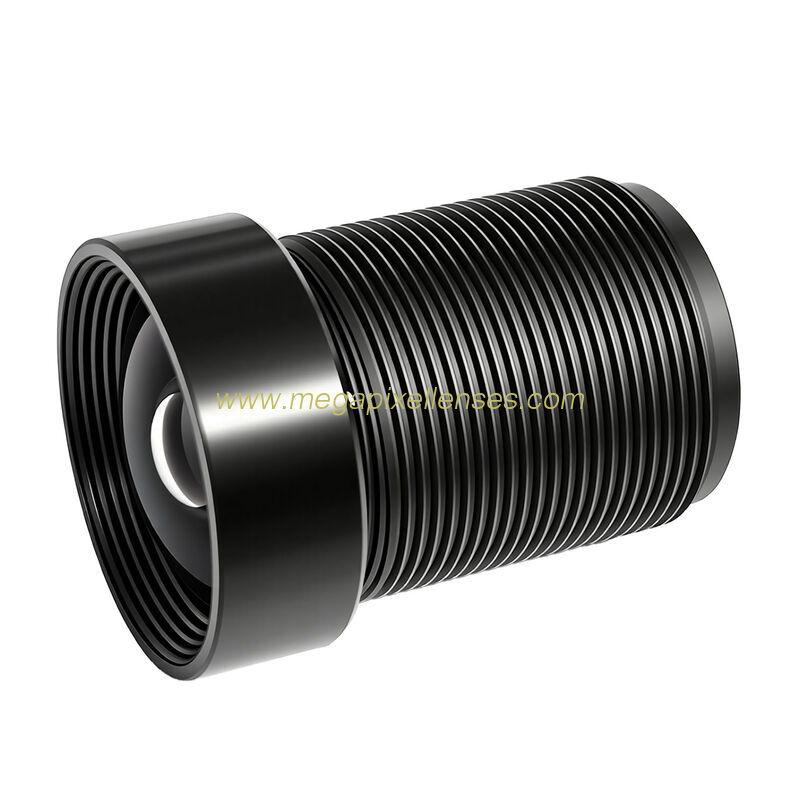

1/2.3" 5.48mm 4K 10MP F2.9 M12x0.5 Mount Non-Distortion Board Lens, Metal M12 Drone lens
 |
Product Details:
| Place of Origin: | China |
| Brand Name: | CCOM LENS |
| Model Number: | 1230548MP / 1230548MPF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100pcs |
|---|---|
| Packaging Details: | Standard |
| Delivery Time: | 3-8 work days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | Samples available |
Detailed Product Description
| Board Lens: | M12 Mount Low-distortion Lens | Resolution: | 10MP |
|---|---|---|---|
| Distortion: | <-3.2% | Constructure: | 9G |
Good Cheap 1/2.3" 5.48mm 10MP 4K F2.9 M12*0.5 Mount S-Mount Non-Distortion Board Lens, economic 4K 10MP UAV Drone lens M12 Rectilinear Lens
Model 1230548MPF
Image Format 1/2.3″
Focal Length 5.48mm ±5%
Aperture F2.9±10%
Resolution 10MP
F.O.V.(D*H*V) 73°*61°*49°
Distortion -3.2%
CRA 12°
R.I. 37%
Mount Type M12*0.5
Minimum Object Distance ≥0.3m
F.B.F.L. 6.22±0.3mm
T.T.L. 25mm ±0.3mm
External Dimensions(mm) Φ13.5(D)*18.73(L)
Tips:
- 1230548MP: without IR-Cut filter
- 1230548MPF: with IR-Cut filter
- 650nm/850nm/940nm IR filter optional
- For more lenses, please feel free to contact us at sales01@megapixellenses.com; cctv.lens@foxmail.com
