1/2.5" 3.2mm F4.2 12MP M12x0.5 Mount Non-Distortion Board Lens

1/2.5" 3.2mm F4.2 12MP M12x0.5 Mount Non-Distortion Board Lens

1/2.5" 3.2mm F4.2 12MP M12x0.5 Mount Non-Distortion Board Lens

Product Details:

Place of Origin: China
Brand Name: CCOM LENS
Model Number: 125032MP-B / 125032MPF-B

Payment & Shipping Terms:

Minimum Order Quantity: 100pcs
Packaging Details: Standard
Delivery Time: 3-8 work days
Payment Terms: T/T, Western Union, Moneygram, Paypal
Supply Ability: Samples available
Contact Now
Detailed Product Description
Board Lens: M12 Mount Low-distortion Lens Resolution: 12MP
TV Distortion: -0.1% Lens Constructure: 8G/8G+IR

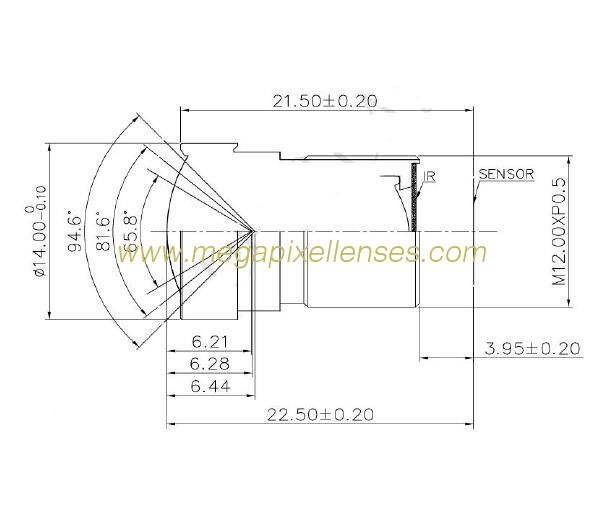

1/2.5" 3.2mm F4.2 12Megapixel M12x0.5 Mount Non-Distortion Board Lens for scanners/HD cameras, the 3.2mm lens can match 1/2.3" sensors



Model: 125032MPF-B
Sensor: 1/2.5"

Image Height: Φ8.5mm
Focal length: 3.2mm
F/No.: 4.2

F.O.V: 95° (D)
Optical Distortion: -0.1%
Mount: M12*P0.5
Resolution: 12MP

M.B.F.L.: 3.95mm
TTL: 22.5mm

R.I.: 73%

C.R.A.: 12°
Constructure: 8G+IR
Lens Dimension: Φ14x18.55mm



Tips:
- ***MP: without IR-Cut filter
- ***MPF: with IR-Cut filter
- 650nm/850nm/940nm IR filter optional

- For more lenses, please feel free to contact us at sales01@megapixellenses.com; cctv.lens@foxmail.com
