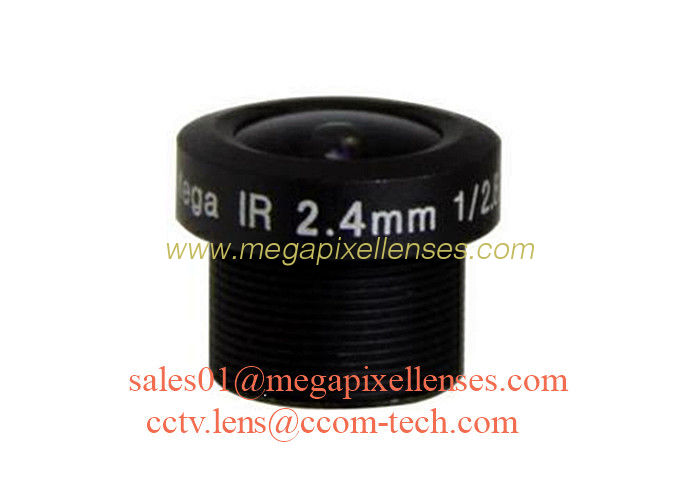

1/2.8" 2.4mm F2.0 3Megapixel M12x0.5 Mount 144degree Wide Angle Lens for AR0130/IMX225/OV4689

1/2.8" 2.4mm F2.0 3Megapixel M12x0.5 Mount 144degree Wide Angle Lens for AR0130/IMX225/OV4689

    • 1/2.8" 2.4mm F2.0 3Megapixel M12x0.5 Mount 144degree Wide Angle Lens for AR0130/IMX225/OV4689
    • 1/2.8" 2.4mm F2.0 3Megapixel M12x0.5 Mount 144degree Wide Angle Lens for AR0130/IMX225/OV4689
  • 1/2.8" 2.4mm F2.0 3Megapixel M12x0.5 Mount 144degree Wide Angle Lens for AR0130/IMX225/OV4689

    Product Details:

    Place of Origin: China
    Brand Name: CCOM LENS
    Model Number: 128024MPF 128024MP

    Payment & Shipping Terms:

    Minimum Order Quantity: 100pcs
    Packaging Details: Standard
    Delivery Time: 2-7 work days
    Payment Terms: T/T, Western Union, Moneygram, Paypal
    Supply Ability: Samples available
    Contact Now
    Detailed Product Description
    Video Lens: M12 Mount Board Lens Resolution: 3MP
    F.O.V.(D*H*V): OV4689 125°x108°x60°, IMX225/AR0130 144°x113°x84° Lens Constructure: 6G/6G+IR

    1/2.8" 2.4mm F2.0 1080P 3Megapixel M12*0.5 mount S-mount 163degree wide angle Lens for 1/2.8" 1/3" 1/3.2" 1/4" sensors, 2.4mm M12 wide angle lens for AR0130/IMX225/OV4689/IMX137/OV9712 etc.



    Model 128024MP
    IMAGE CIRCLE Φ6.9mm
    SENSOR 1/2.8" CCD/CMOS
    FOCAL LENGTH 2.4mm
    RESOLUTION 3MP
    F.O.V.(D*H*V) OV9712 103°x89°x50°, IMX137 96°x83°x46°, OV4689 125°x108°x60°, IMX225 144°x113°x84°, AR0130 144°x113°x84°
    TV DISTORTION <-30% (1/2.5” Full)
    APERTURE F2.0
    IRIS Fixed
    M.O.D. 0.3m
    MOUNT M12XP0.5
    B.F.L. 4.91mm (in air)
    T.T.L. 17.43mm
    LENS CONSTRUCTURE 6-5
    DIMENSION Φ15*12.5mm



    Tips:

    - ***MP: without IR-Cut filter
    - ***MPF: with IR-Cut filter
    - 650nm/850nm/940nm IR filter optional

    - For more lenses, please feel free to contact us at sales01@megapixellenses.com; cctv.lens@ccom-tech.com
