Home ProductsInfrared Filter/IR-Cut Filter

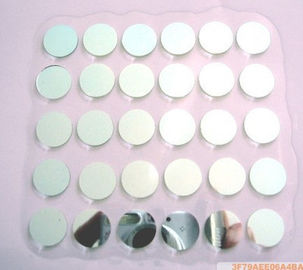

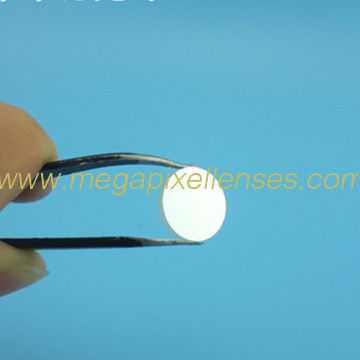

650nm plus 850nm narrow band IR pass filter, 650nm 850nm bimodal IR filter round filter D6.8x0.7mm

650nm plus 850nm narrow band IR pass filter, 650nm 850nm bimodal IR filter round filter D6.8x0.7mm

    • 650nm plus 850nm narrow band IR pass filter, 650nm 850nm bimodal IR filter round filter D6.8x0.7mm
    • 650nm plus 850nm narrow band IR pass filter, 650nm 850nm bimodal IR filter round filter D6.8x0.7mm
  • 650nm plus 850nm narrow band IR pass filter, 650nm 850nm bimodal IR filter round filter D6.8x0.7mm

    Product Details:

    Place of Origin: China
    Brand Name: CCOM LENS
    Model Number: IR650-850NB

    Payment & Shipping Terms:

    Minimum Order Quantity: 100pcs
    Packaging Details: Standard
    Delivery Time: 2-7 work days
    Payment Terms: T/T, Western Union, Moneygram, Paypal
    Supply Ability: Samples available
    Contact Now
    Detailed Product Description
    IR Filter: 650nm Plus 850nm Narrow Band IR Pass Filter Center Wavelength: 650nm & 850nm
    Shape: Round Material: Glass

    650 plus 850nm narrow band dual band IR pass filter, 650-850nm narrow band bimodal filter, Round IR filter D6.8x0.7mm



    Model: IR650-850NB(D6.8)

    Diameter: 6.8mm

    Thickness: 0.7mm

    Center wavelength: 650nm + 850nm

    Deviation of the center wavelength: 10nm

    Half bandwidth: 30nm

    Peak transmission rate: 90%

    Cut-off depth: <1%

    Color and Material: mirror glass



    Tips:

    - Square shape optional

    - Custom size available

    - For more IR filters, please feel free to contact us at sales01@megapixellenses.com; cctv.lens@ccom-tech.com
