Waterproof endoscope camera module, 1/18" CMOS, 3.9mm wide, 320×240, DC3.6V

Waterproof endoscope camera module, 1/18" CMOS, 3.9mm wide, 320×240, DC3.6V

    • Waterproof endoscope camera module, 1/18" CMOS, 3.9mm wide, 320×240, DC3.6V
    • Waterproof endoscope camera module, 1/18" CMOS, 3.9mm wide, 320×240, DC3.6V
    • Waterproof endoscope camera module, 1/18" CMOS, 3.9mm wide, 320×240, DC3.6V
    • Waterproof endoscope camera module, 1/18" CMOS, 3.9mm wide, 320×240, DC3.6V
    • Waterproof endoscope camera module, 1/18" CMOS, 3.9mm wide, 320×240, DC3.6V
  • Waterproof endoscope camera module, 1/18" CMOS, 3.9mm wide, 320×240, DC3.6V

    Product Details:

    Place of Origin: China
    Brand Name: CCOM LENS
    Model Number: 39118-54, 39118-54-LED

    Payment & Shipping Terms:

    Minimum Order Quantity: 100pcs
    Packaging Details: Standard
    Delivery Time: 2-7 work days
    Payment Terms: T/T, Western Union, Moneygram, Paypal
    Supply Ability: Samples available
    Minimum Order Quantity: 10pcs
    Contact Now
    Detailed Product Description

    This camera is the world's smallest camera, using 1/18” CMOS chip. The camera outside diameter is only 3.9mm, able to configure wide-angle lenses and telephoto lenses to observe objects at close range.

    The camera is suitable for industrial video endoscope, pipe probe endoscope, vehicle detection endoscope, cylinder testing, video fishing camera, underwater camera, ENT endoscope, intraoral endoscope, medical endoscope, throat endoscope, etc.

    The main advantages of this product are: small size, low power consumption, clear imaging.



    Specifications

    • Sensor: 1/18” CMOS
    • Horizontal Line: 200TVL
    • Signal System: NTSC
    • Effective Pixel: 320 × 240
    • Electronic Shutter(AES): 1/60S - 1/170000S
    • AGC: Open
    • SNR: ≥42dB
    • Gradation: 10th rank
    • Gamma: 0.45
    • Illumination: > 0 Lux / F3.0 (0 Lux when the LED is on)
    • Composite Video Output: 1.0Vp-p 75Ω
    • Lens: F3.0, 54°
    • Focal distance: 10~50mm

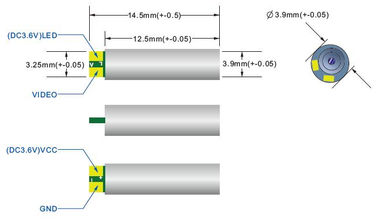

    • Module size: 3.9mm*15mm
    • Light: 2PCS white LED
    • Power: DC 3.5V~3.6V, less than 350mW
    • Operating temperature : -10 ℃ ~ 60 ℃ RH95% Max
