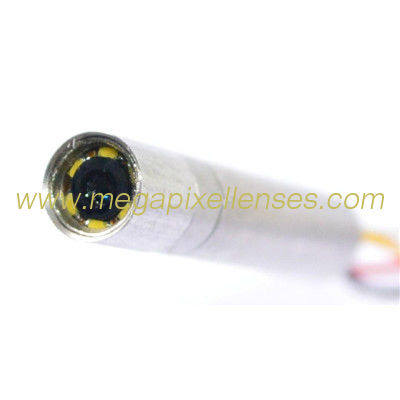

5.5mm 0.3MP 1/12" CMOS waterproof medical endoscope camera module

5.5mm 0.3MP 1/12" CMOS waterproof medical endoscope camera module

    • 5.5mm 0.3MP 1/12" CMOS waterproof medical endoscope camera module
    • 5.5mm 0.3MP 1/12" CMOS waterproof medical endoscope camera module
    • 5.5mm 0.3MP 1/12" CMOS waterproof medical endoscope camera module
  • 5.5mm 0.3MP 1/12" CMOS waterproof medical endoscope camera module

    Product Details:

    Place of Origin: China
    Brand Name: CCOM LENS
    Model Number: 5512-60, 5512-60-LED

    Payment & Shipping Terms:

    Minimum Order Quantity: 100pcs
    Packaging Details: Standard
    Delivery Time: 2-7 work days
    Payment Terms: T/T, Western Union, Moneygram, Paypal
    Supply Ability: Samples available
    Minimum Order Quantity: 10 pcs
    Contact Now
    Detailed Product Description
    High Light:

    Analog HD CCTV Camera

    ,

    AHD-M bullet camera

    ,

    720P analog camera

    The camera uses 1/12 CMOS chip, clear imaging, can reach up to 340 000 pixels; 60 fps output without smearing; standard video signal output, display devices connected to the home TV, parking displays and others. With six high-brightness LED lighting, no lighting dead, no spot.

    Product outer diameter of only 5.5 mm, convenient for observing close objects, for industrial video endoscope, the endoscope pipeline detection, vehicle detection endoscope, cylinder testing, fishing video camera, underwater camera, invisible cameras, ENT endoscopes, intraoral camera, medical endoscopes, endoscope throat.

    The main advantages of this product include: small size, high pixel, high frame rate, imaging results clear, is your good choice.

    Connection definitions
    Red: camera power supply (3.3V-3.6V)
    Yellow: Video output
    Black: common ground
    White: LED power supply

    Specifications
    Lens
    • Depth of field:  60degree version: 20-60mm, 80 degree version: 7mm-35mm
    • FOV: 60degree or 80degree
    • F1.19/2.1mm with IR-cut filter
    Size: 5.5 (W) * 33 (L) mm
    Senor: 1/12 color COMS
    Frame rate: 60Fps (N) / 50Fps (P)
    Format PAL / NTSC
    Effective Pixels: 720 (h) × 480 (v) (N) / 720 (h) × 576 (v) (P)
    SNR: more than 38dB
    Dynamic range: 66dB
    Sensing Area: 1440μm×1653μm
    Pixel size: 1.75μm×1.75μm
    Minimum Illumination: 0.1 Lux / F2.0
    Output: CVBS / NTSC
    AWB: ON
    AGC: ON
    Operating temperature: 0 ~ + 50 ℃
    Power DC 3.3V-5V / 90mA
    LED 6PCS 0402 white LED, DC3.3V*40mA
