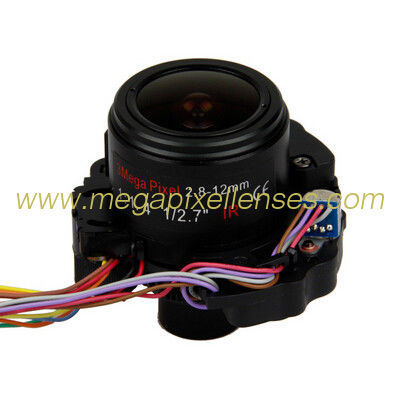

1/2.7" 2.8-12mm F1.8 3Megapixel Φ14 Mount Motorized ZOOM Vari-focal IR-CUT Lens
 |
Product Details:
| Place of Origin: | China |
| Brand Name: | CCOM LENS |
| Model Number: | 1272812EEIRC-3MP |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100pcs |
|---|---|
| Packaging Details: | Standard |
| Delivery Time: | 2-7 work days |
| Payment Terms: | T/T, Western Union, Moneygram, Paypal |
| Supply Ability: | Samples available |
| Minimum Order Quantity: | 100 pcs |
Detailed Product Description
1/2.7" 2.8-12mm F1.4 3Megapixel M12 Mount AUTO IRIS Motorized Zoom Vari-focal IR-CUT Lens
Model 1272812EEIRC-3MP
IMAGE FORMAT 1/2.7"
FOCAL LENGTH 2.8~12mm
F.O.V (D*H*V):
1/2.7”: Short focal: 136°*109°*81.6°; Long focal: 39°*31.2°*23.4°
1/3”: Short focal: 122°*97.6°*73.2°; Long focal: 36°*28.8°*21.6°
1/4”: Short focal: 87°*69.6°*52.2°; Long focal: 24°*19°*14°
RESOLUTION 3MP
APERTURE F1.8
MOUNT Φ14
OPTICAL DISTORTION 1/2.7”: 61%~4%; 1/3”: 47%~3.4%; 1/4”: 24.5%~1.85%
IRIS DC + IR CUT
ZOOM DC
FOCUS DC
M.O.D. 0.3m
B.F.L. 6.9~14.4mm
F.B.L. 13.5mm
M.B.F. 6.0mm
DIMENSION Φ43.9×41.7mm
OPERATING TEMPERATURE -20℃～+60℃
