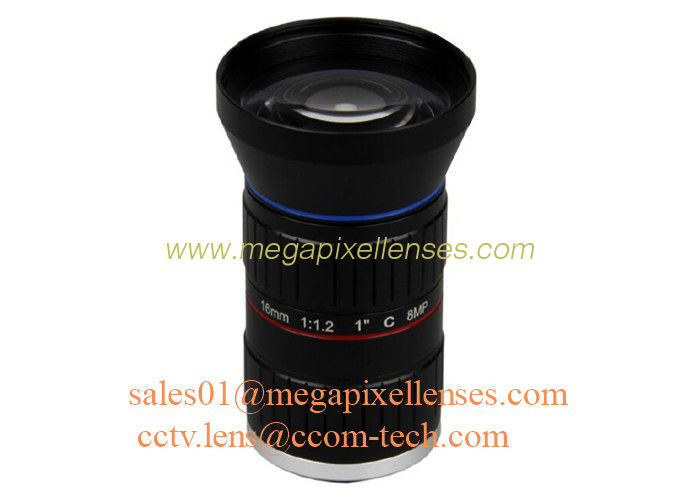

1" 16mm F1.2 8Megapixel C Mount Manual IRIS Low Distortion ITS Lens, 16mm Traffic Monitoring Lens

1" 16mm F1.2 8Megapixel C Mount Manual IRIS Low Distortion ITS Lens, 16mm Traffic Monitoring Lens

    • 1" 16mm F1.2 8Megapixel C Mount Manual IRIS Low Distortion ITS Lens, 16mm Traffic Monitoring Lens
    • 1" 16mm F1.2 8Megapixel C Mount Manual IRIS Low Distortion ITS Lens, 16mm Traffic Monitoring Lens
    • 1" 16mm F1.2 8Megapixel C Mount Manual IRIS Low Distortion ITS Lens, 16mm Traffic Monitoring Lens
    • 1" 16mm F1.2 8Megapixel C Mount Manual IRIS Low Distortion ITS Lens, 16mm Traffic Monitoring Lens
    • 1" 16mm F1.2 8Megapixel C Mount Manual IRIS Low Distortion ITS Lens, 16mm Traffic Monitoring Lens
  • 1" 16mm F1.2 8Megapixel C Mount Manual IRIS Low Distortion ITS Lens, 16mm Traffic Monitoring Lens

    Product Details:

    Place of Origin: China
    Brand Name: CCOM LENS
    Model Number: 111612MM-C-8MP

    Payment & Shipping Terms:

    Minimum Order Quantity: 100pcs
    Packaging Details: Standard
    Delivery Time: 2-7 work days
    Payment Terms: T/T, Western Union, Moneygram, Paypal
    Supply Ability: Samples available
    Contact Now
    Detailed Product Description
    ITS Lens: Fixed Focal C Mount Lens Resolution: 8MP
    IRIS: Manual IR Collection: No

    Main advantages of ITS Lens:

    - Show license plate numbers and driver's face clearly;

    - Ultra-high resolution of 5-12 megapixel;

    - Low distortion image high quality with good corner brightness;

    - Auto/manual IRIS;

    - Large image format for ITS and standard surveillance applications;

    - Popula for ANPR(LPR) applications.



    1" 16mm F1.2 8Megapixel C Mount Low Distortion ITS Lens, Manual IRIS Manual Focus Traffic Monitoring Lens for 1" 3/4" 2/3" 1/2" 1/3"... sensors



    MODEL 111612MM-C-8MP
    IMAGE FORMAT 1"
    FOCAL LENGTH 16mm
    F.O.V (D*H*V) 1": 56°*44.8°*33.6°, 2/3”: 38.6°*30.9*23.2°, 1/2”: 28.4°*22.7°*17°

    RESOLUTION 8MP
    OPTICAL DISTORTION <-3.4%
    APERTURE F1.2
    MOUNT C
    IRIS Manual
    FOCUS Manual
    M.O.D. 0.8m
    Flange .B.F.L. 17.526mm

    B.F.L. 13.46mm
    M.B.F. 10.7~12.1mm

    IR COLLECTION NO
    DIMENSION Φ57×95.4~96.8mm

    OPERATING TEMPERATURE -20℃~+60℃



    Tips:

    - For more lenses, please feel free to contact us at sales01@megapixellenses.com; cctv.lens@ccom-tech.com
