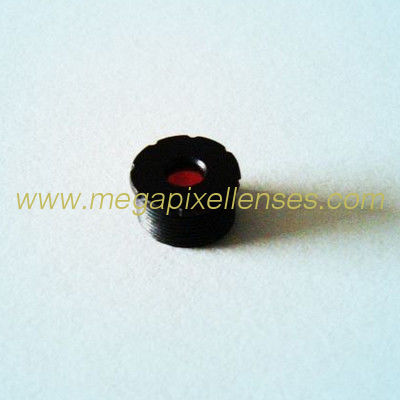

1/4" 4.2mm 5Megapixel M8*0.5 mount non-distortion lens for 5Mega CMOS sensors

1/4" 4.2mm 5Megapixel M8*0.5 mount non-distortion lens for 5Mega CMOS sensors

    • 1/4" 4.2mm 5Megapixel M8*0.5 mount non-distortion lens for 5Mega CMOS sensors
    • 1/4" 4.2mm 5Megapixel M8*0.5 mount non-distortion lens for 5Mega CMOS sensors
    • 1/4" 4.2mm 5Megapixel M8*0.5 mount non-distortion lens for 5Mega CMOS sensors
    • 1/4" 4.2mm 5Megapixel M8*0.5 mount non-distortion lens for 5Mega CMOS sensors
    • 1/4" 4.2mm 5Megapixel M8*0.5 mount non-distortion lens for 5Mega CMOS sensors

    Product Details:

    Place of Origin: China
    Brand Name: CCOM LENS
    Model Number: 14042MPF-M8

    Payment & Shipping Terms:

    Minimum Order Quantity: 100pcs
    Packaging Details: Standard
    Delivery Time: 2-7 work days
    Payment Terms: T/T, Western Union, Moneygram, Paypal
    Supply Ability: Samples available
    Minimum Order Quantity: 100pcs
    Contact Now
    Detailed Product Description

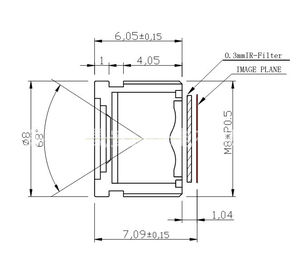

    5Megapixel 1/4" 4.2mm M8*0.5 mount lens for 1/4" ~ 1/3" 5MP CMOS Sensors


    MODEL 14042MPF-M8
    IMAGE FORMAT: 1/4" ~ 1/3"
    FOCAL LENGTH(mm): 4.2
    D.F.O.V.: 56°
    RESOLUTION: 5 MP
    DISTORTION: <1%
    APERTURE: F2.4
    MOUNT(mm):M8x0.5
    M.O.D.(cm): 30
    B.F.L.(mm): 1.04
    T.T.L.(mm): 7.09
    LENS COMPOMEMT: 5E
