Home ProductsMegapixel M12 Board Lenses/Wide-Angle Lenses

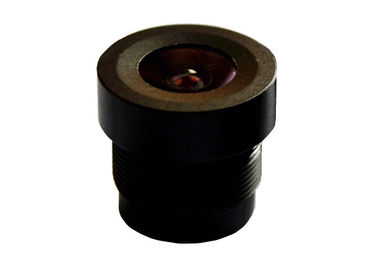

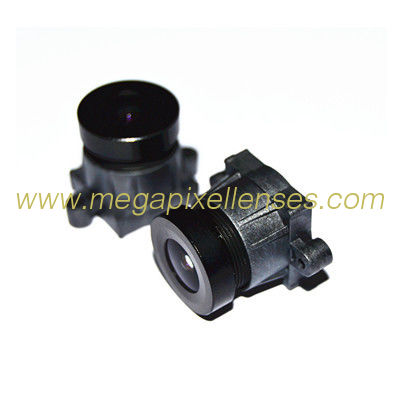

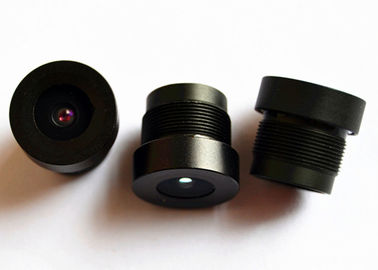

1/2.3" 3.65mm 10Megapixel M12x0.5 mount 132Degree wide angle lens for IMX078/MT9F002/OV4689/MI5100/OV2710

1/2.3" 3.65mm 10Megapixel M12x0.5 mount 132Degree wide angle lens for IMX078/MT9F002/OV4689/MI5100/OV2710

    • 1/2.3" 3.65mm 10Megapixel M12x0.5 mount 132Degree wide angle lens for IMX078/MT9F002/OV4689/MI5100/OV2710
    • 1/2.3" 3.65mm 10Megapixel M12x0.5 mount 132Degree wide angle lens for IMX078/MT9F002/OV4689/MI5100/OV2710
    • 1/2.3" 3.65mm 10Megapixel M12x0.5 mount 132Degree wide angle lens for IMX078/MT9F002/OV4689/MI5100/OV2710
    • 1/2.3" 3.65mm 10Megapixel M12x0.5 mount 132Degree wide angle lens for IMX078/MT9F002/OV4689/MI5100/OV2710
  • 1/2.3" 3.65mm 10Megapixel M12x0.5 mount 132Degree wide angle lens for IMX078/MT9F002/OV4689/MI5100/OV2710

    Product Details:

    Place of Origin: China
    Brand Name: CCOM LENS
    Model Number: 1230365MPF-B

    Payment & Shipping Terms:

    Minimum Order Quantity: 100pcs
    Packaging Details: Standard
    Delivery Time: 2-7 work days
    Payment Terms: T/T, Western Union, Moneygram, Paypal
    Supply Ability: Samples available
    Contact Now
    Detailed Product Description
    Video Lens: M12 Mount Board Lens Resolution: 10MP
    FOV(D*H*V): MT9F002: 132°*101.5°*74°; OV4689: 110°*90°*50° Lens Constructure: 6G/6G+IR

    1/2.3" 3.65mm 1080P 10Megapixel M12x0.5 mount 132Degree Wide Angle Lens for 1/2.3" ~ 1/4" sensors, MT9F003/OV4689/MI5100/OV2710/AR0230/AR0330/IMX122/OV8858 wide angle lens, megapixel wide-angle lens for sport DV/Car DVR



    MODEL 1230365MPF-B01/1230365MPF-B06/1230365MPF-B15/1230365MPF-B16(waterproof)
    SENSOR SIZE 1/2.3"
    MAX IMAGE CIRCLE Ø 8.2mm
    FOCAL LENGTH 3.65mm

    F.O.V. (D*H*V) IMX078CQK:  MT9F002: 138°*105°*76°; 132°*101.5°*74°; OV4689: 110°*90°*50°
    RESOLUTION 10MP
    APERTURE F2.4/F1.8/F3.0/F1.8
    OPTICAL DISTORTION <-37.84%
    MOUNT M12x0.5
    B.F.L.(O) 5.39mm
    B.F.L.(M) 3.68mm
    T.T.L. 15.91mm (TTL 16.61 optional)

    DIMENSION Φ14x12.23mm

    R.I. IMX078 >53%; MT9F002 >59.8%; OV4689 >89.8%

    C.R.A. IMX078 <12.64°; MT9F002 <12.5°; OV4689 <11.2°
    LENS CONSTRUCTURE 6G+IR



    Tips:
    - ***MP: without IR-Cut filter
    - ***MPF: with IR-Cut filter

    - 1230365MPF-B16 is IP67 waterproof lens.

    - M12/M9 mount option
    - 650nm/850nm/940nm IR filter optional

    - For more lenses, please feel free to contact us at sales01@megapixellenses.com; cctv.lens@ccom-tech.com
