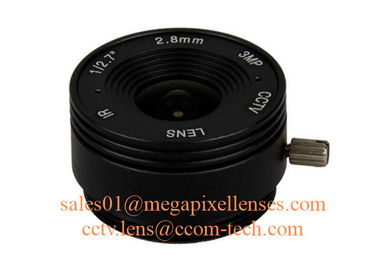

1/2.7" 2.8mm F2.6 3Megapixel M12x0.5 mount 140degree board lens for security camera
 |
Product Details:
| Place of Origin: | China |
| Brand Name: | CCOM LENS |
| Model Number: | 12702826MP 12702826MPF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100pcs |
|---|---|
| Packaging Details: | Standard |
| Delivery Time: | 2-7 work days |
| Payment Terms: | T/T, Western Union, Moneygram, Paypal |
| Supply Ability: | Samples available |
Detailed Product Description
| Video Lens: | M12 Mount Board Lens | Resolution: | 3MP |
|---|---|---|---|
| FOV(D*H*V): | 1/2.7”: 140°×112°×84°; 1/3”: 125°×100°×75°; 1/4": 88°×70.4°×52.8° | Lens Constructure: | 4G/4G+IR |
1/2.7" 2.8mm F2.6 3Megapixel M12x0.5 mount 140degree wide angle lens, 2.8mm M12 mount wide angle cctv lens, M12/CS mount option

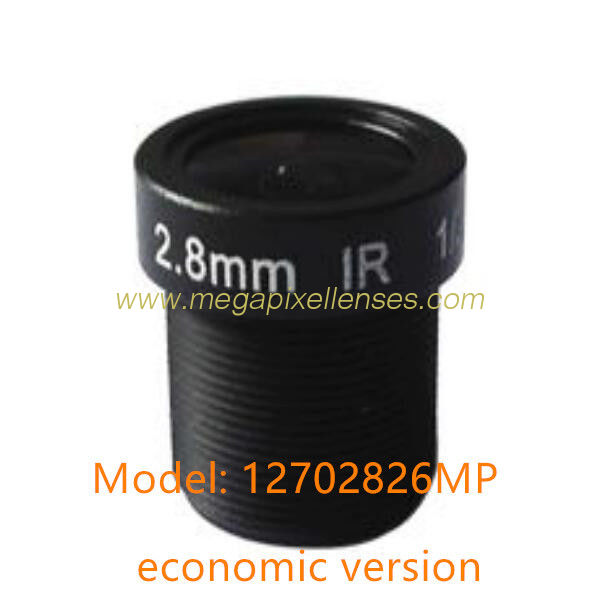

Model 12702826MP
IMAGE FORMAT 1/2.7"
SENSOR 1/2.7” & 1/3” CCD/CMOS
MAX IMAGE CIRCLE Φ6.6mm
FOCAL LENGTH 2.8mm
F.O.V(D*H*V) 1/2.7”: 140°×112°×84°; 1/3”: 125°×100°×75°; 1/4": 88°×70.4°×52.8°
RESOLUTION 3MP
APERTURE F2.6
OPTICAL DISTORTION <-61%
MOUNT M12X0.5
IRIS Fixed
M.O.D. 0.3m
B.F.L. 5.7mm
M.B.F. 5.3mm
T.T.L. 20.95mm
DIMENSION Φ14*15.7mm
IR COLLECTION YES
Tips:
- ***MP: without IR-Cut filter
- ***MPF: with IR-Cut filter
- 650nm/850nm/940nm IR filter optional
- CS/M12 mount option
- For more lenses, please feel free to contact us at sales01@megapixellenses.com; cctv.lens@ccom-tech.com
