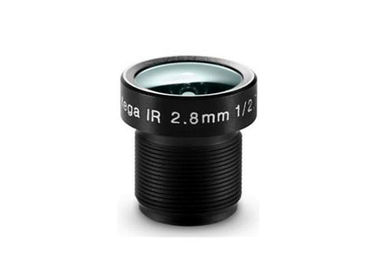

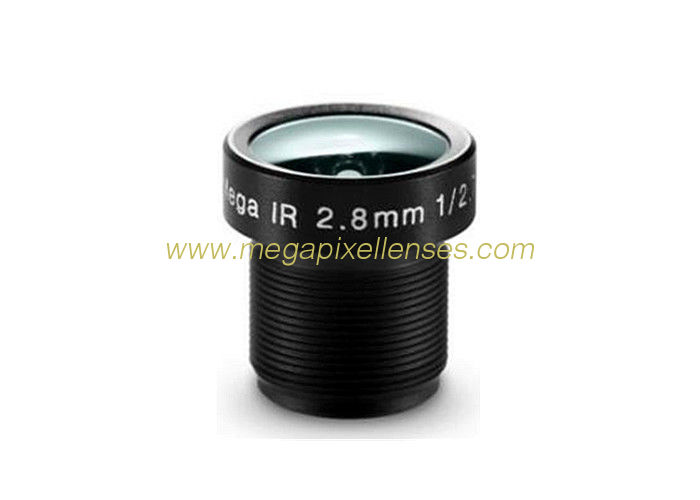

1/2.7" 2.8mm F1.8 3Megapixel M12x0.5 mount 135degrees wide angle IR board lens for security camera

1/2.7" 2.8mm F1.8 3Megapixel M12x0.5 mount 135degrees wide angle IR board lens for security camera

    • 1/2.7" 2.8mm F1.8 3Megapixel M12x0.5 mount 135degrees wide angle IR board lens for security camera
    • 1/2.7" 2.8mm F1.8 3Megapixel M12x0.5 mount 135degrees wide angle IR board lens for security camera
  • 1/2.7" 2.8mm F1.8 3Megapixel M12x0.5 mount 135degrees wide angle IR board lens for security camera

    Product Details:

    Place of Origin: China
    Brand Name: CCOM LENS
    Model Number: 12702818MP

    Payment & Shipping Terms:

    Minimum Order Quantity: 100pcs
    Packaging Details: Standard
    Delivery Time: 2-7 work days
    Payment Terms: T/T, Western Union, Moneygram, Paypal
    Supply Ability: Samples available
    Contact Now
    Detailed Product Description
    Video Lens: M12 Mount Board Lens Resolution: 3MP
    FOV(H): 1/2.7" 1080P: 115°, 1/2.8" 1080P: 109°, 1/3.2” Full: 90° Lens Constructure: 6G/6G+IR
    High Light:

    megipixel lens

    ,

    lens supplier

    ,

    IR M12x0.5 Board Lens

    1/2.7" 2.8mm F1.8 3Megapixel M12x0.5 mount 135degree wide angle fixed focal lens, 2.8mm M12 mount wide angle cctv lens for security cameras, M12/CS mount option



    Model 12702818MP
    IMAGE FORMAT 1/2.7"
    FOCAL LENGTH 2.8mm
    F.O.V (H) 1/2.7" 1080P: 115°, 1/2.8" 1080P: 109°, 1/3.2” Full: 90°
    RESOLUTION 3MP
    APERTURE F1.8
    TV DISTORTION <-18%
    MOUNT M12X0.5
    IRIS Fixed
    M.O.D. 0.3m
    F.B.L. 6.1mm (in air)
    T.T.L. 22.5mm (in air)
    DIMENSION Φ15*16.4mm
    IR Corrected YES



    Tips:
    - ***MP: without IR-Cut filter
    - ***MPF: with IR-Cut filter
    - 650nm/850nm/940nm IR filter optional

    - CS/M12 mount option

    - For more lenses, please feel free to contact us at sales01@megapixellenses.com; cctv.lens@ccom-tech.com
